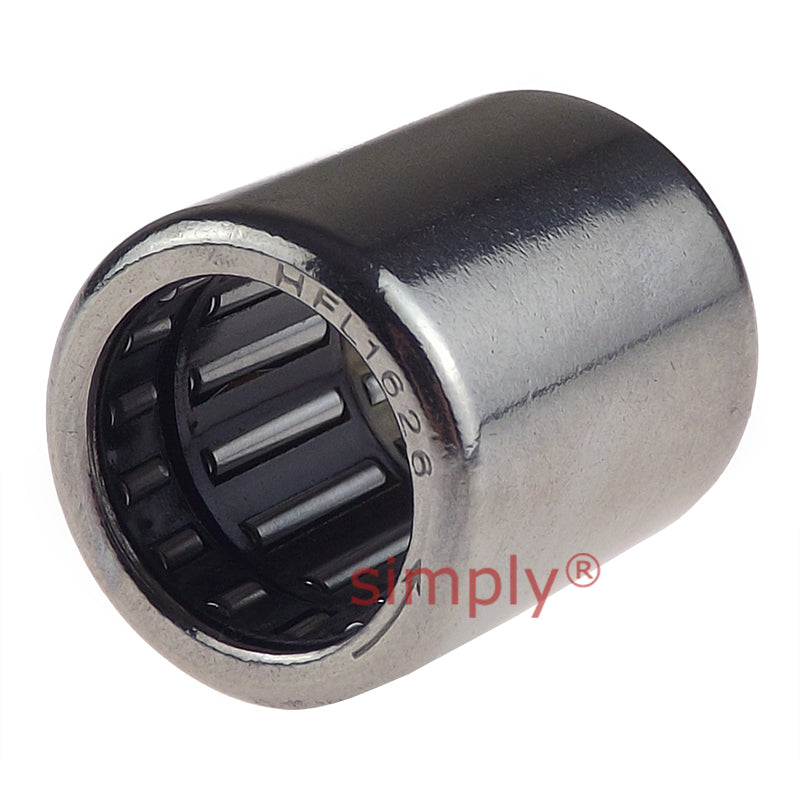

HFL1626 Budget Needle Roller Clutch Type One Way Bearing 16x22x26mm
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 26mm
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 26mm (Tolerance: 0/-0.3) |
| r min | 0.3mm |
| Permissable torque | 20.5 Nm |
| Speed (rotating shaft) | 8500 rpm |
| Speed (rotating outer ring) | 7500 rpm |
| Maximum permissable radial load | 7400 N |
| Limiting load | 9000 N/min |
| Weight | 22 g |
