SKU: HGJ30-JCS
JCS HGJ30 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 22-30mm Band Width 13mm
JCS HGJ30 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 22-30mm Band Width 13mm
Regular price
$10.46
ex VAT
Regular price
Sale price
$10.46
ex VAT
In stock
Price Break
3+
$7.01
5+
$6.61
9+
$6.53
19+
$6.45
49+
$6.38
74+
$6.30
99+
$5.90
199+
$5.83
249+
$5.75
499+
$5.67
999+
$5.51
Quantity
Couldn't load pickup availability
Share this product
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 22mm
- Max Adjustment Range:
- 30mm
Technical
Technical

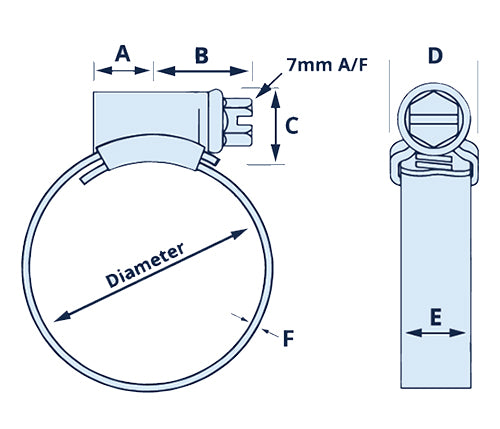

| BS No. | 30 |
|---|---|
| Adjustment Range (mm) | 22-30mm |
| Adjustment Range (inch) | 7/8 - 1-1/8 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
