SKU: HGS40-JCS

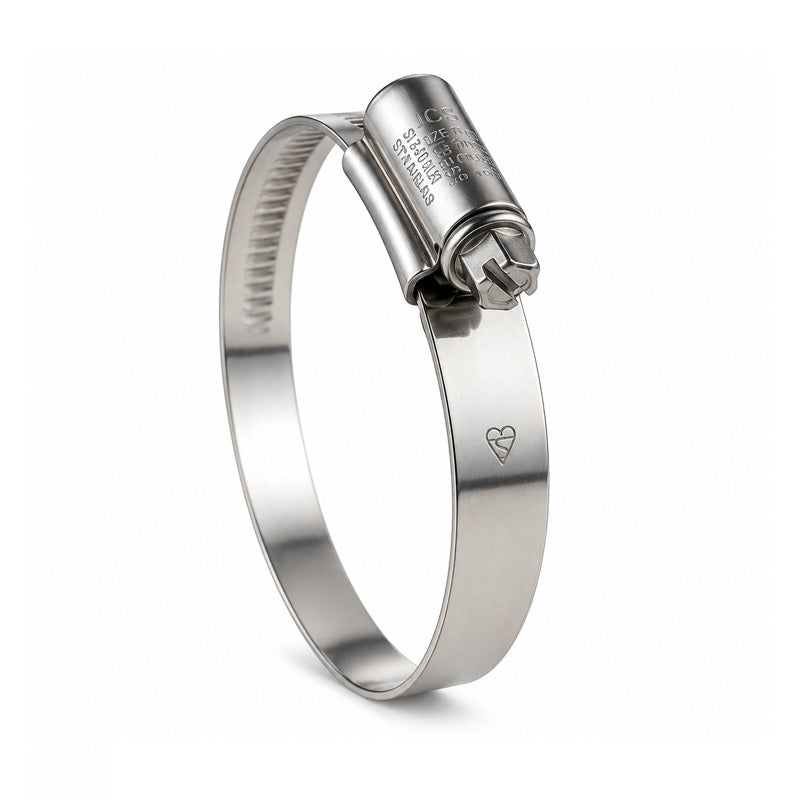

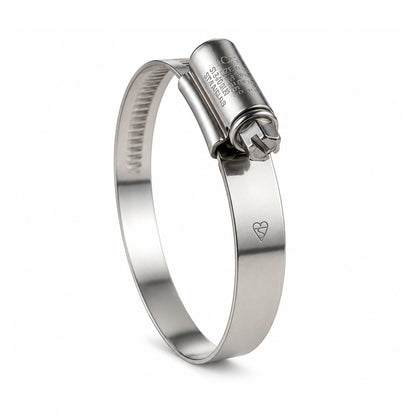

JCS HGS40 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 30-40mm Band Width 13mm
JCS HGS40 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 30-40mm Band Width 13mm
Regular price
$6.35
ex VAT
Regular price
Sale price
$6.35
ex VAT
In stock
Price Break
5+
$4.73
10+
$4.54
20+
$4.45
50+
$4.30
100+
$4.21
500+
$3.97
1000+
$3.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
304 Stainless Steel Hi-Grip Worm Drive Hose Clips: Hi-Grip stainless steel worm drive hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 30mm
- Max Adjustment Range:
- 40mm
Technical
Technical

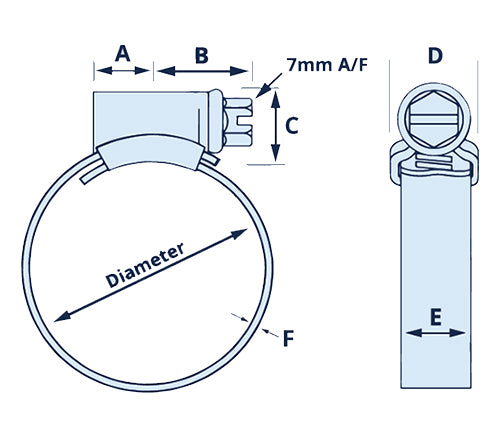

| BS No. | 40 |
|---|---|
| Adjustment Range (mm) | 30-40mm |
| Adjustment Range (inch) | 1-1/8 - 1-5/8 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
