SKU: HGZ140-JCS

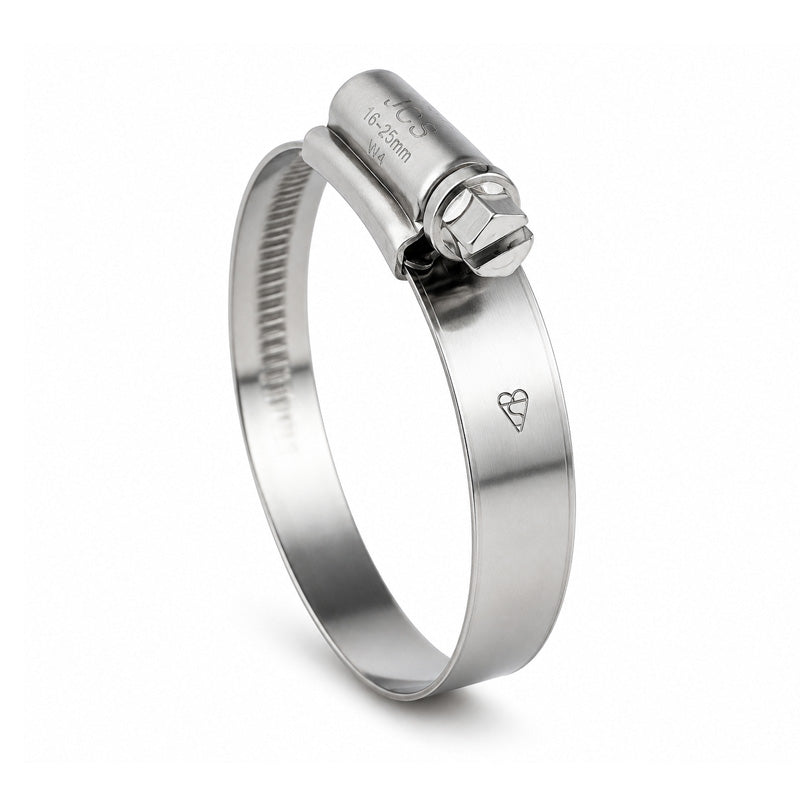

JCS HGZ140 Zinc Plated Steel Hi-Grip Hose Clip Adjustment Range 110-140mm Band Width 13mm
JCS HGZ140 Zinc Plated Steel Hi-Grip Hose Clip Adjustment Range 110-140mm Band Width 13mm
Regular price
$6.35
ex VAT
Regular price
Sale price
$6.35
ex VAT
In stock
Price Break
5+
$4.73
10+
$4.54
20+
$4.45
50+
$4.30
100+
$4.21
500+
$3.97
1000+
$3.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Zinc Plated Steel Hi-Grip Worm Drive Hose Clips: Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 110mm
- Max Adjustment Range:
- 140mm
Technical
Technical
| BS No. | 140 |
|---|---|
| Adjustment Range (mm) | 110-140mm |
| Adjustment Range (inch) | 4-3/8 - 5-1/2 inch |
| A | 13mm |
| B | 20mm |
| C | 12mm |
| D | 16mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 6Nm |
| Recommended Torque lb-in | 54lb-in |
