SKU: HH264149/HH264110CD/HH264149XA-TIM

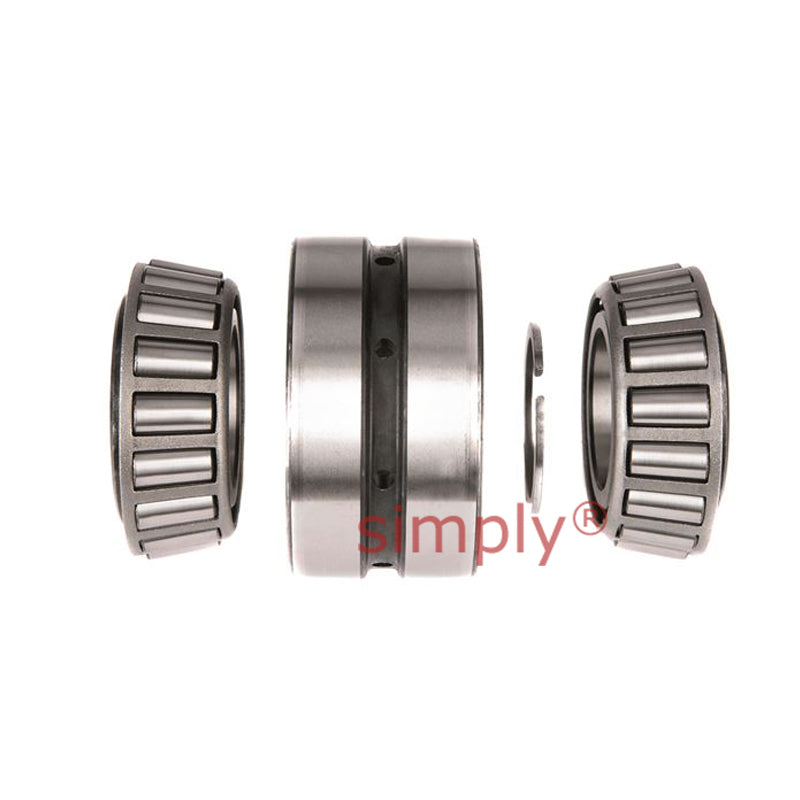

Timken HH264149/HH264110CD/HH264149XA TDO Double Outer Race Taper Roller Bearing 13.3838x23.2263x13.3859x10.9449 inch
Timken HH264149/HH264110CD/HH264149XA TDO Double Outer Race Taper Roller Bearing 13.3838x23.2263x13.3859x10.9449 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 339.95mm = 13.3838 inch
- Outside Diameter:
- 589.95mm = 23.2263 inch
- Width:
- 340.00mm = 13.3859 inch
Technical
Technical
| d | 339.949mm = 13.3838 inch |
|---|---|
| D | 589.949mm = 23.2263 inch |
| T | 340.002mm = 13.3859 inch |
| C | 278mm = 10.9449 inch |
| Dynamic (1) C1 | 6660000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 992000N |
| Dynamic (2) Ca90 | 565000N |
| Dynamic (2) C90(2) | 1730000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 14mm = 0.55 inch |
| Shaft backing shoulder diameter db | 402mm = 15.83 inch |
| Housing max shaft fillet radius r(3) | 3.5mm = 0.14 inch |
| Housing backing shoulder diameter Da | 552mm = 21.73 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 15mm = 0.59 inch |
| G1 | 5000 |
| G2 | 238 |
| Cg | 0.2228 |
