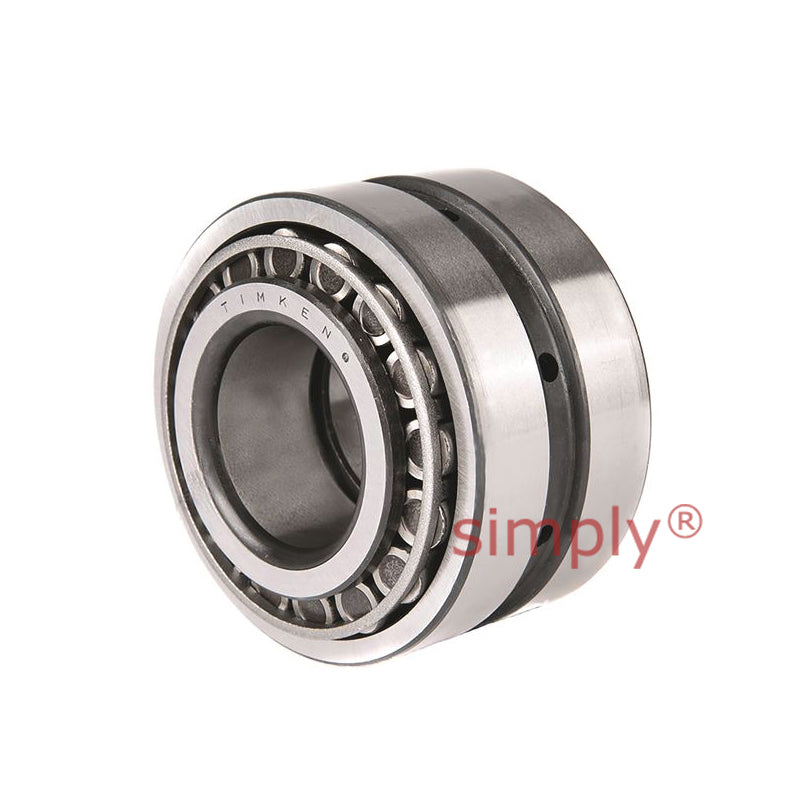

Timken HH949549/HH949510DC/HH949549XA TDO Double Outer Race Taper Roller Bearing 9x19.25x10x6 inch
Timken HH949549/HH949510DC/HH949549XA TDO Double Outer Race Taper Roller Bearing 9x19.25x10x6 inch
Out of stock
Description
Description

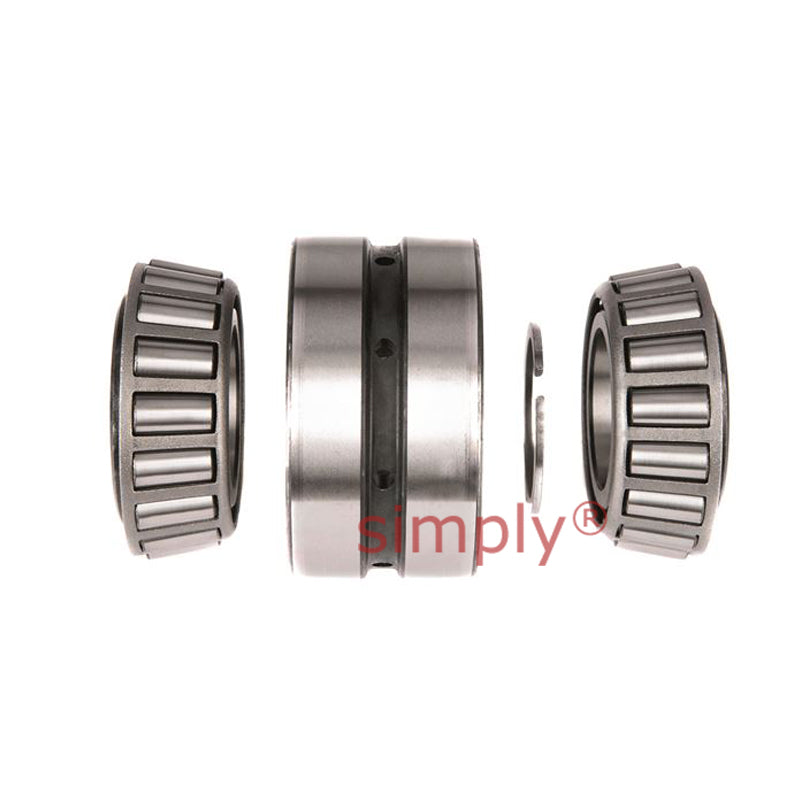

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 228.60mm = 9 inch
- Outside Diameter:
- 488.95mm = 19.25 inch
- Width:
- 254.00mm = 10 inch
Technical
Technical
| d | 228.6mm = 9 inch |
|---|---|
| D | 488.95mm = 19.25 inch |
| T | 254mm = 10 inch |
| C | 152.4mm = 6 inch |
| Dynamic (1) C1 | 3050000N |
| Factors (5) e | 0.94 |
| Factors (5) Y1 | 0.72 |
| Factors (5) Y2 | 1.07 |
| Dynamic (2) C90 | 455000N |
| Dynamic (2) Ca90 | 730000N |
| Dynamic (2) C90(2) | 792000N |
| Factors (5) K | 0.62 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 297mm = 11.69 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 456mm = 17.95 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 11.7mm = 0.46 inch |
| G1 | 1300 |
| G2 | 91.5 |
| Cg | 0.1931 |
