SKU: HK0509-EU

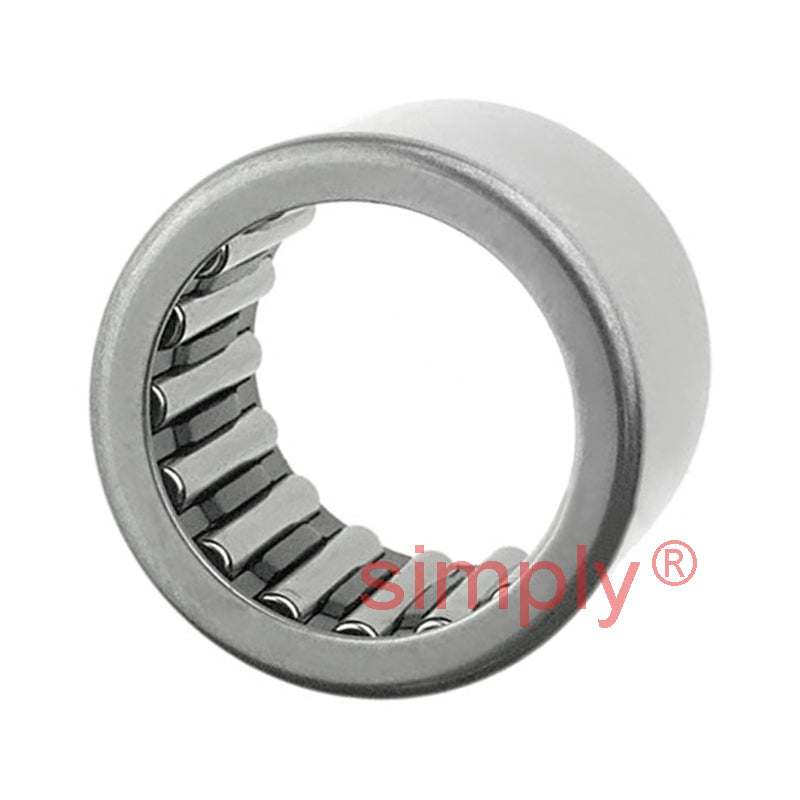

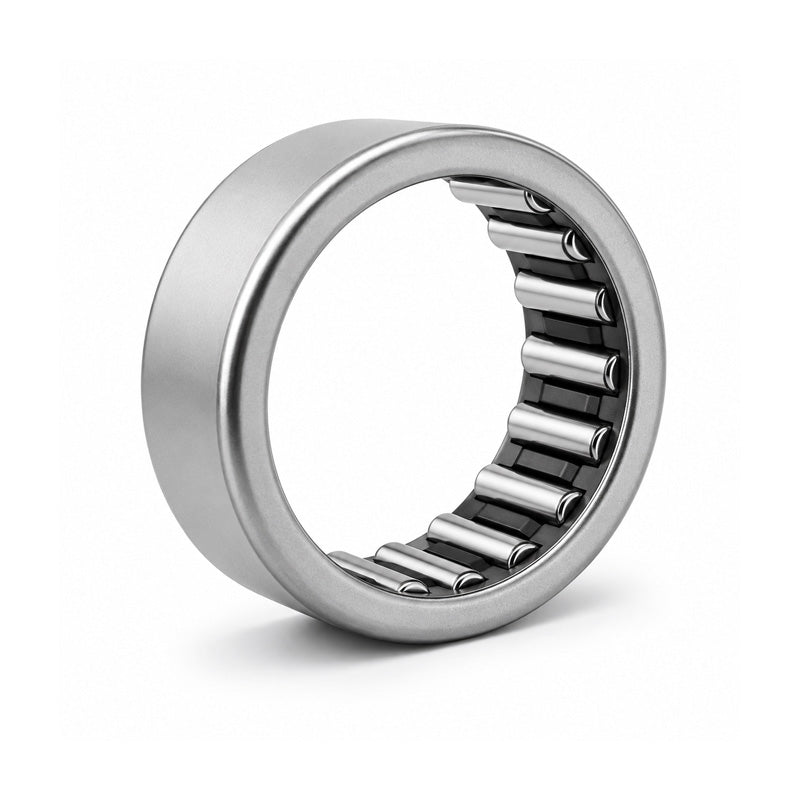

HK0509 Budget Drawn Cup Type Needle Roller Bearing Open End Type 5x9x9mm
HK0509 Budget Drawn Cup Type Needle Roller Bearing Open End Type 5x9x9mm
Regular price
$3.84
ex VAT
Regular price
Sale price
$3.84
ex VAT
Equivalent to: TLA59Z RHNA050909
In stock
Price Break
10+
$2.57
19+
$2.43
29+
$2.40
39+
$2.37
49+
$2.34
74+
$2.31
99+
$2.17
199+
$2.14
249+
$2.11
499+
$2.08
999+
$2.02
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 9mm
- Width:
- 9mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 9mm |
| C | 9mm |
| Dynamic load C | 2380 N |
| Static load Co | 2080 N |
| Fatigue load limit Pu | 220 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 min | 0.4mm |
| Da max | 5.3mm |
| ra max | 0.4mm |
| Seal | G5x9x2S |
| Weight | 2 g |
