SKU: HK0810RS-MB

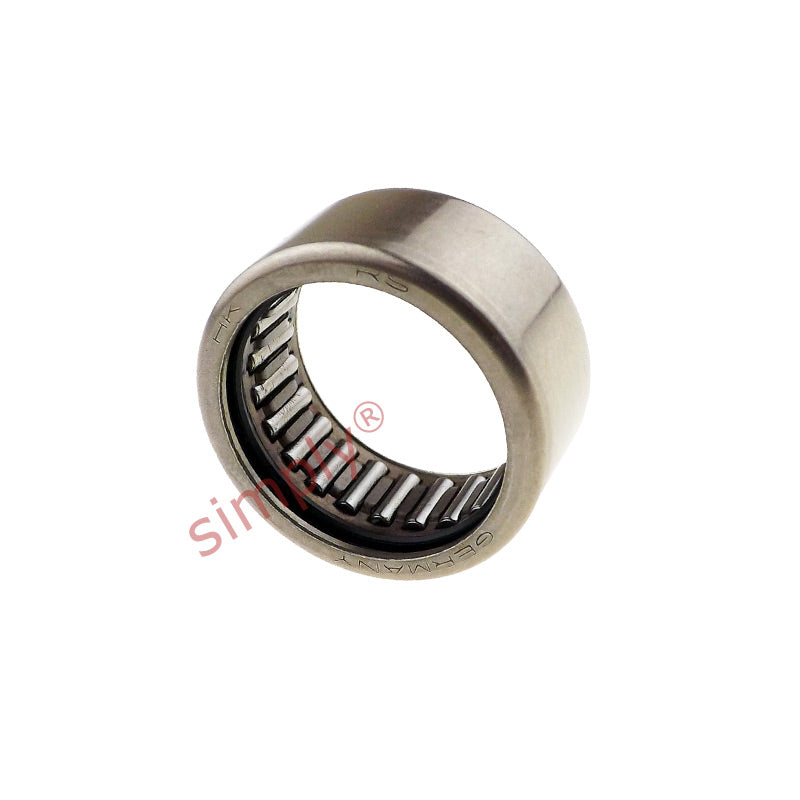

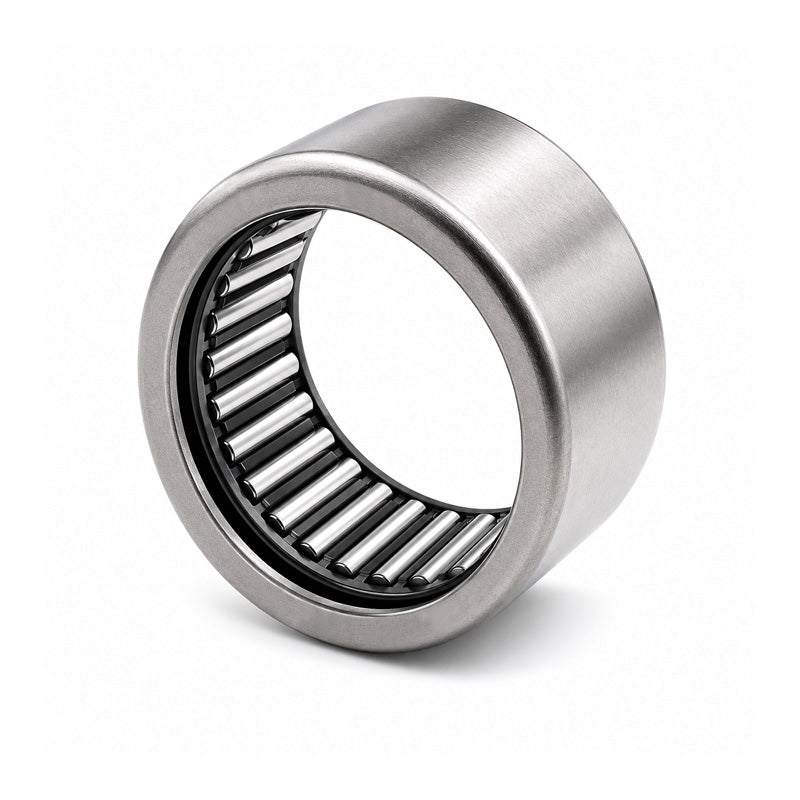

Major Brand HK0810RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 8x12x10mm
- Regular price
- $9.76 ex VAT
- Sale price
- $9.76
- Regular price
-
In stock
Quantity Price Breaks
10
$8.69
19
$8.20
29
$8.10
39
$8.00
49
$7.91
74
$7.81
99
$7.32
199
$7.22
249
$7.12
499
$7.03
999
$6.83
SKU:
HK0810RS-MB
Major Brand HK0810RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 8x12x10mm
- Regular price
- $9.76 ex VAT
- Sale price
- $9.76
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 8mm |
| D | = | 12mm |
| C | = | 10mm |
| Dynamic load | = | 2700 N |
| Static load | = | 2750 N |
| Fatigue load limit Pu | = | 285 N |
| Speed in grease | = | 14000 rpm |
| r1r2 min | = | 0.4mm |
| Da max | = | 8.3mm |
| ra max | = | 0.4mm |
| Inner ring | = | IR5x8x12 |
| Weight | = | 3 g |
