SKU: HK1012F-NTN
NTN HK1012F Drawn Cup Needle Roller Bearing with Open End 10x14x12mm
NTN HK1012F Drawn Cup Needle Roller Bearing with Open End 10x14x12mm
Regular price
$6.23
ex VAT
Regular price
Sale price
$6.23
ex VAT
In stock
Price Break
3+
$4.17
4+
$3.94
9+
$3.89
19+
$3.85
49+
$3.80
99+
$3.75
499+
$3.52
999+
$3.47
1999+
$3.42
2999+
$3.38
4999+
$3.28
Quantity
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 12mm
Technical
Technical

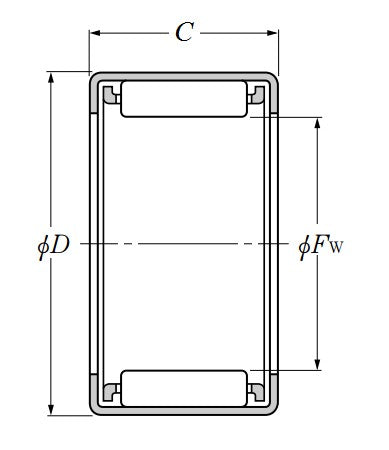

| Fw - Inside diameter | 10mm |
|---|---|
| D - Outside diameter | 14mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR7X10X16 |
| Cr - Dynamic load rating | 5.65 kN |
| C0r - Static load rating | 6.8 kN |
| N - Grease lubrication limit speed | 16000 tr/min |
| N - Oil lubrication limit speed | 24000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
