SKU: HK1214-EU

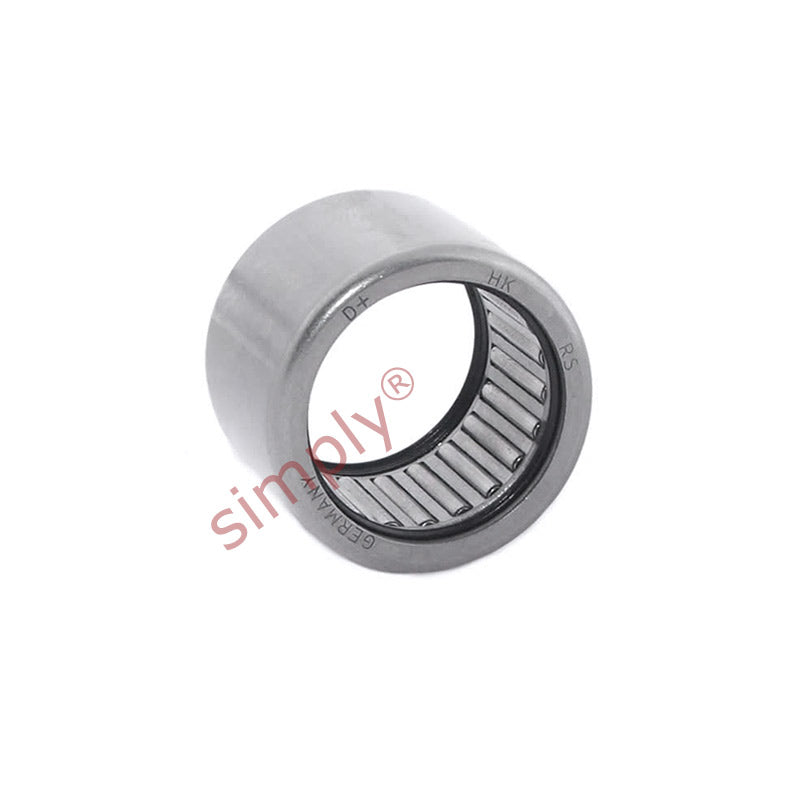

HK1214 Budget Drawn Cup Type Needle Roller Bearing Open End Type 12x18x14mm
HK1214 Budget Drawn Cup Type Needle Roller Bearing Open End Type 12x18x14mm
Regular price
$4.62
ex VAT
Regular price
Sale price
$4.62
ex VAT
In stock
Price Break
10+
$3.10
19+
$2.92
29+
$2.89
39+
$2.85
49+
$2.82
74+
$2.78
99+
$2.61
199+
$2.58
249+
$2.54
499+
$2.51
999+
$2.44
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 14mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 14mm |
