SKU: HK1414RS-MB

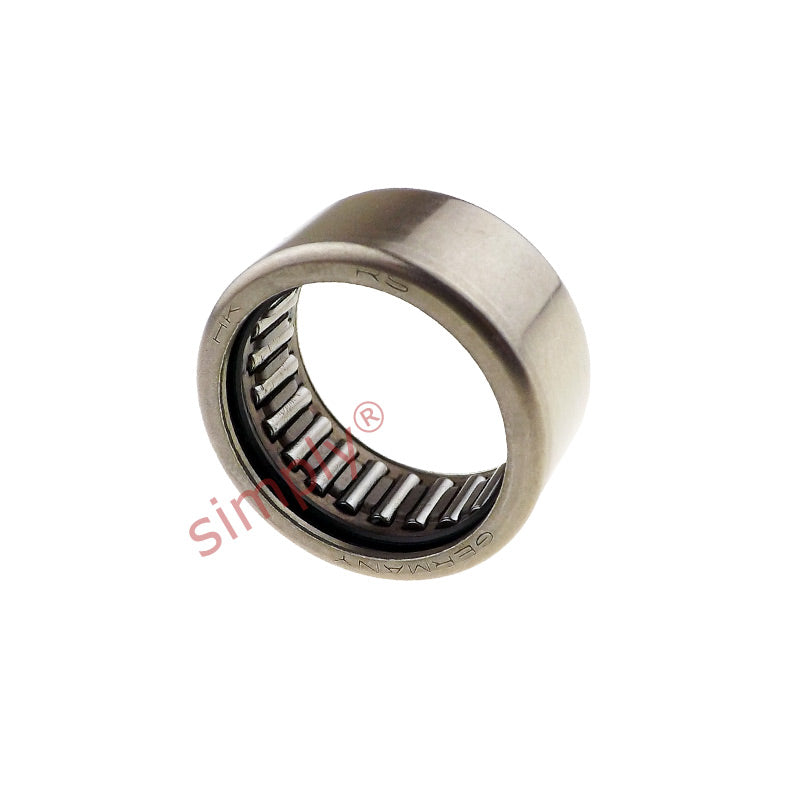

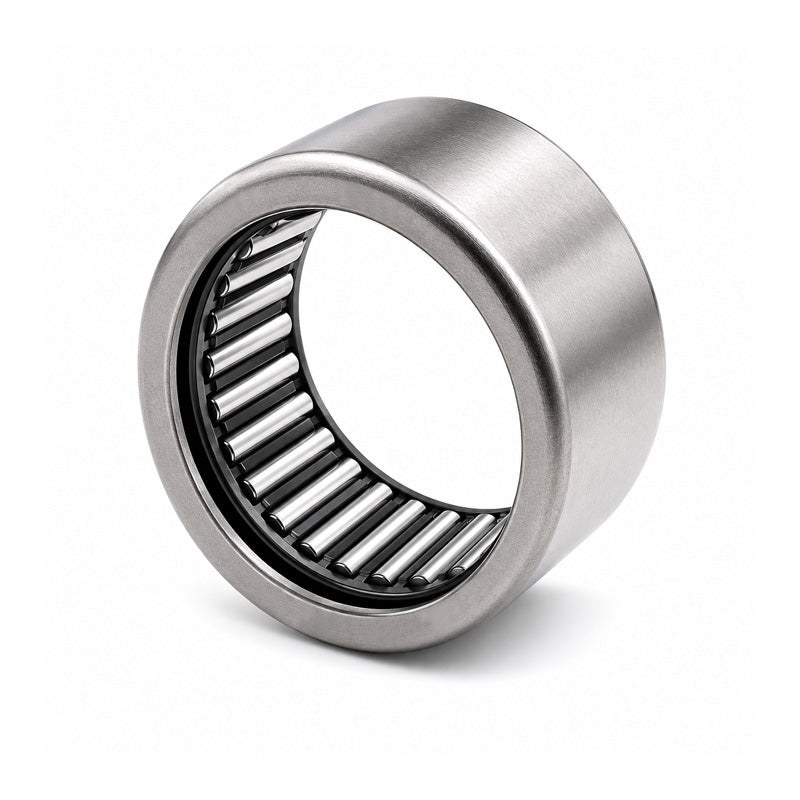

Major Brand HK1414RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 14x20x14mm
- Regular price
- $9.16 ex VAT
- Sale price
- $9.16
- Regular price
-
In stock
Quantity Price Breaks
10
$8.15
19
$7.69
29
$7.60
39
$7.51
49
$7.42
74
$7.33
99
$6.87
199
$6.78
249
$6.69
499
$6.60
999
$6.41
SKU:
HK1414RS-MB
Major Brand HK1414RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 14x20x14mm
- Regular price
- $9.16 ex VAT
- Sale price
- $9.16
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 14mm |
| D | = | 20mm |
| C | = | 14mm |
| Dynamic load | = | 6820 N |
| Static load | = | 8650 N |
| Fatigue load limit Pu | = | 980 N |
| Speed in grease | = | 11000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 15mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR10x14x16 |
| Weight | = | 12 g |
