SKU: HK1416.2RS-EU

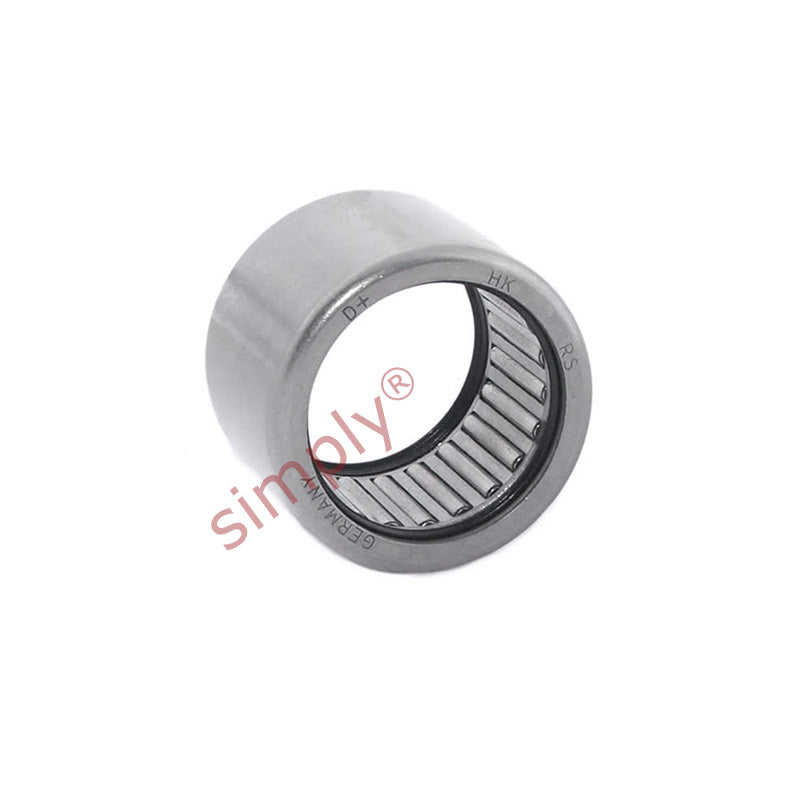

HK14162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 14x20x16mm
HK14162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 14x20x16mm
Regular price
$7.25
ex VAT
Regular price
Sale price
$7.25
ex VAT
In stock
Price Break
10+
$4.86
19+
$4.59
29+
$4.54
39+
$4.48
49+
$4.43
74+
$4.37
99+
$4.10
199+
$4.04
249+
$3.99
499+
$3.93
999+
$3.83
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 20mm |
| C | 16mm |
| Dynamic load C | 6820 N |
| Static load Co | 8650 N |
| Fatigue load limit Pu | 980 N |
| Speed in grease | 11000 rpm |
| r1r2 min | 0.8mm |
| Da max | 15mm |
| ra max | 0.8mm |
| Inner ring | IR10x14x20 |
| Weight | 13 g |
