SKU: HK1518RS-MB

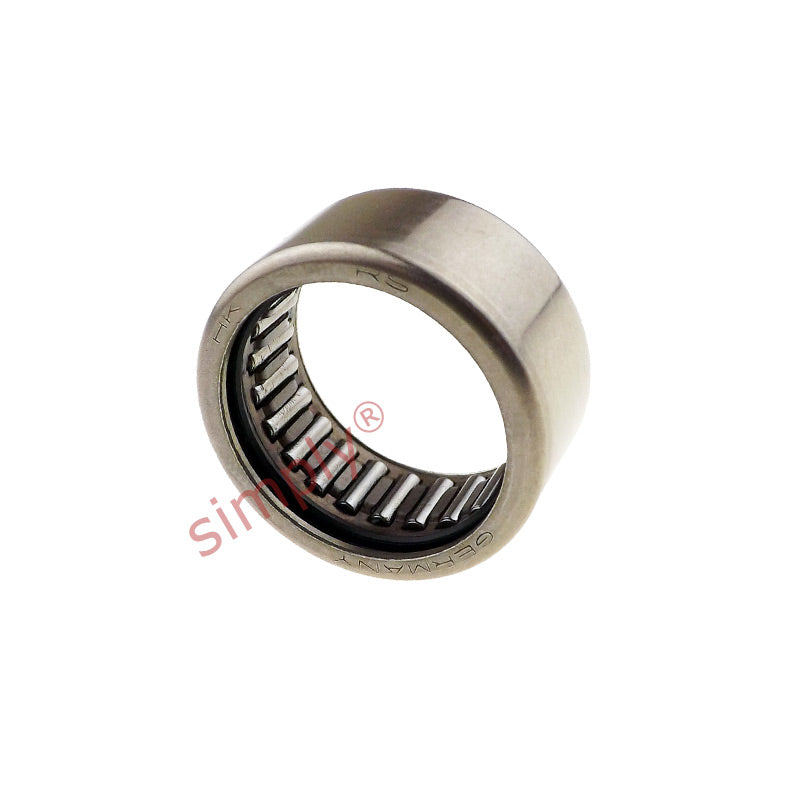

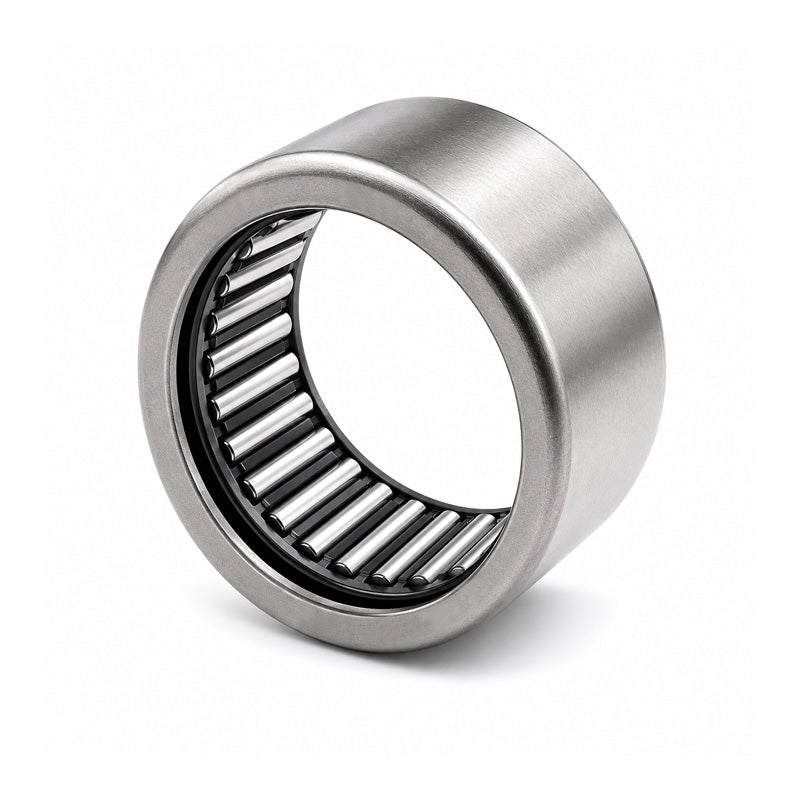

Major Brand HK1518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 15x21x18mm
- Regular price
- $9.53 ex VAT
- Sale price
- $9.53
- Regular price
-
In stock
Quantity Price Breaks
10
$8.48
19
$8.01
29
$7.91
39
$7.81
49
$7.72
74
$7.62
99
$7.15
199
$7.05
249
$6.96
499
$6.86
999
$6.67
SKU:
HK1518RS-MB
Major Brand HK1518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 15x21x18mm
- Regular price
- $9.53 ex VAT
- Sale price
- $9.53
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 15mm |
| D | = | 21mm |
| C | = | 18mm |
| Dynamic load | = | 10100 N |
| Static load | = | 14600 N |
| Fatigue load limit Pu | = | 1700 N |
| Speed in grease | = | 11000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 16mm |
| ra max | = | 0.8mm |
| Weight | = | 16 g |
