SKU: HK1522-EU

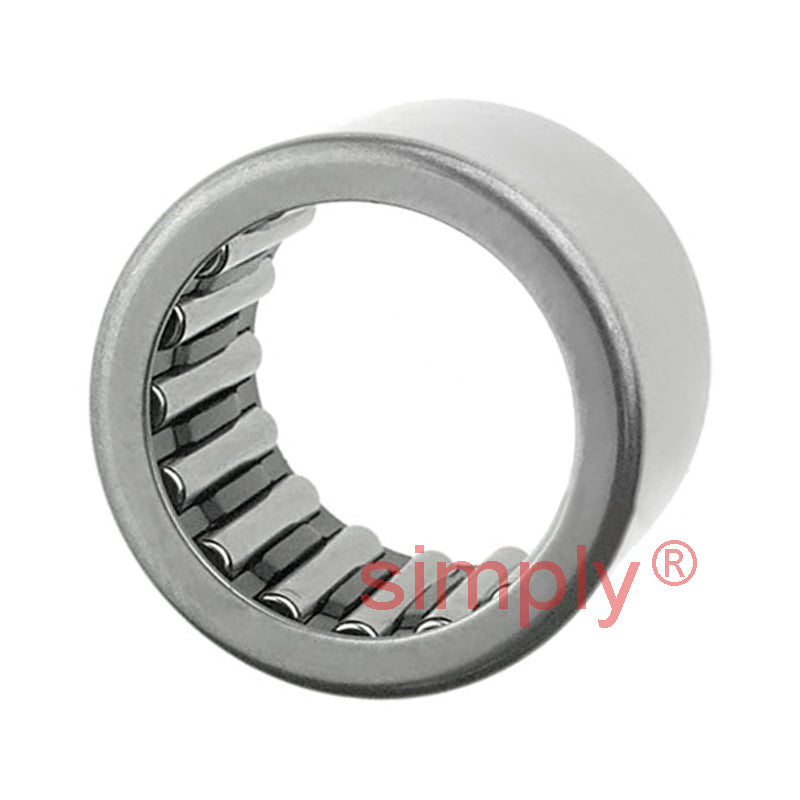

HK1522 Budget Drawn Cup Type Needle Roller Bearing Open End Type 15x21x22mm
HK1522 Budget Drawn Cup Type Needle Roller Bearing Open End Type 15x21x22mm
Regular price
$6.34
ex VAT
Regular price
Sale price
$6.34
ex VAT
Equivalent to: TLA1522Z RHNA152122
In stock
Price Break
10+
$4.24
19+
$4.00
29+
$3.96
39+
$3.91
49+
$3.86
74+
$3.81
99+
$3.57
199+
$3.53
249+
$3.48
499+
$3.43
999+
$3.34
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 22mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 21mm |
| C | 22mm |
| Dynamic load C | 13000 N |
| Static load Co | 20000 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| r1r2 min | 0.8mm |
| Da max | 16mm |
| ra max | 0.8mm |
| Inner ring | IR12x15x22.5 |
| Seal | G/SD15x21x3 |
| Weight | 20 g |
