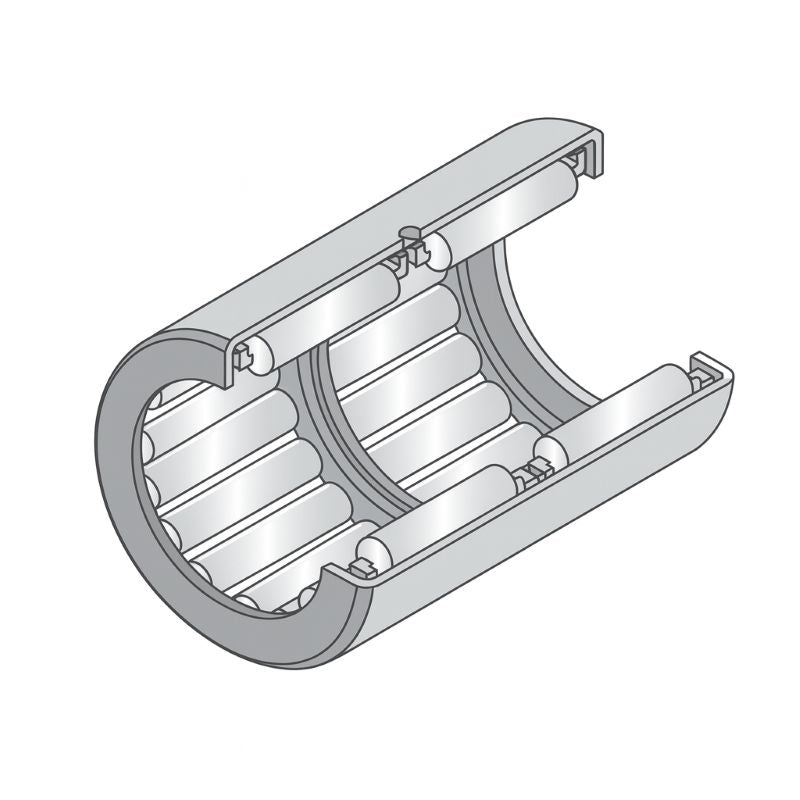

• NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
  • NTN
1 2

SKU: HK1522ZWD-NTN

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
$7.61 ex VAT
$7.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.10
4+ $4.81
9+ $4.76
19+ $4.70
49+ $4.64
99+ $4.58
499+ $4.30
999+ $4.24
1999+ $4.18
2999+ $4.13
4999+ $4.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
21mm
Width:
22mm
Technical
Fw - Inside diameter 15mm
D - Outside diameter 21mm
C - Width of bearing, drawn cup or outer ring 22mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR12X15X22.5
Cr - Dynamic load rating 12.9 kN
C0r - Static load rating 18.2 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
