SKU: HK1614RS-EU

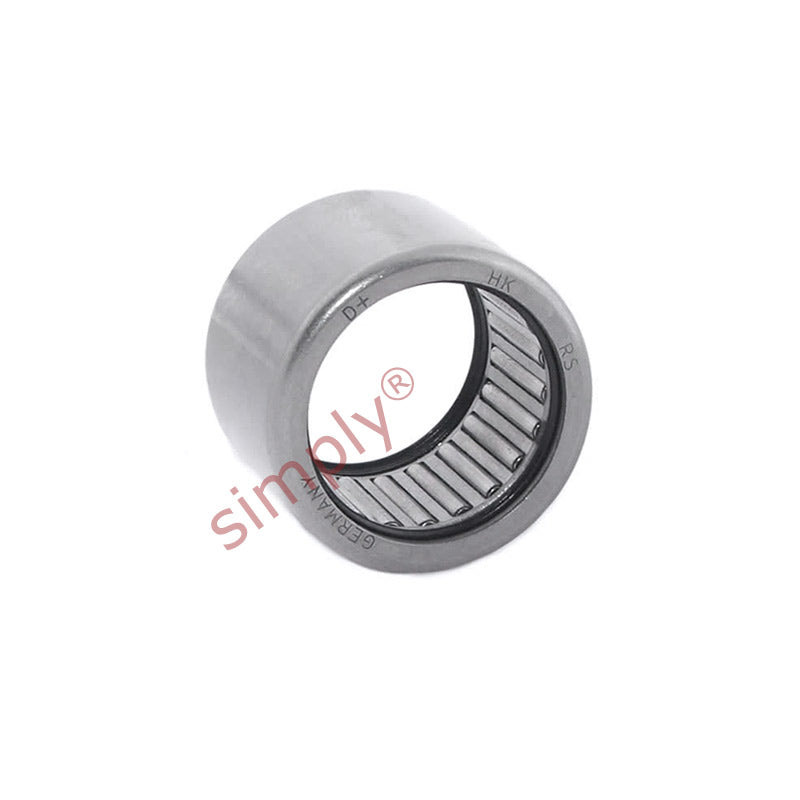

HK1614RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x14mm
HK1614RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x14mm
Regular price
$6.72
ex VAT
Regular price
Sale price
$6.72
ex VAT
In stock
Price Break
10+
$4.51
19+
$4.25
29+
$4.20
39+
$4.15
49+
$4.10
74+
$4.05
99+
$3.80
199+
$3.75
249+
$3.70
499+
$3.65
999+
$3.54
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 14mm |
| Dynamic load C | 7370 N |
| Static load Co | 9800 N |
| Fatigue load limit Pu | 1120 N |
| Speed in grease | 10000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x16 |
| Weight | 13 g |
