SKU: HK1616-EU

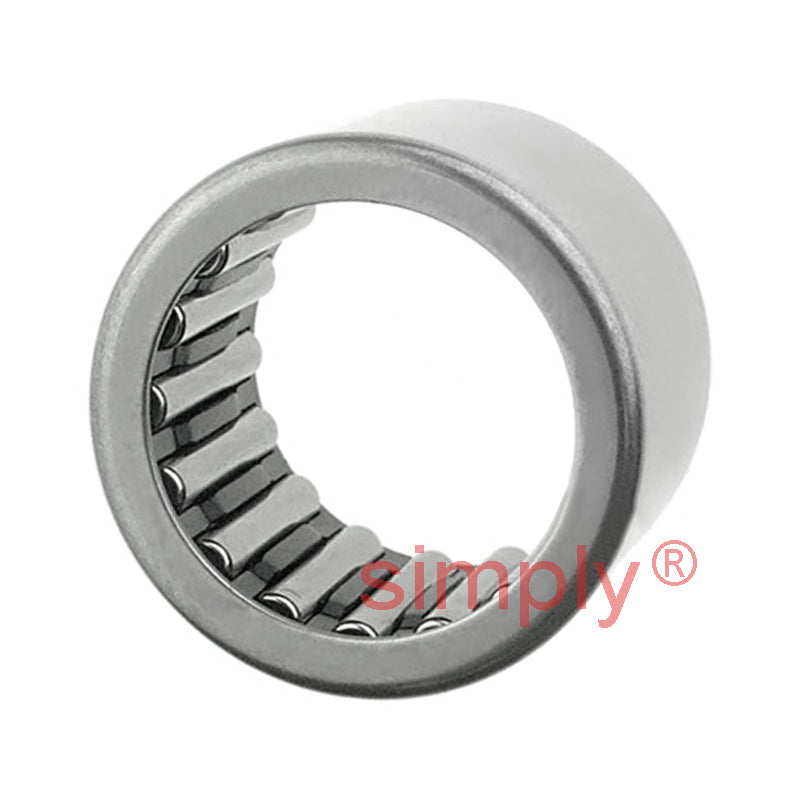

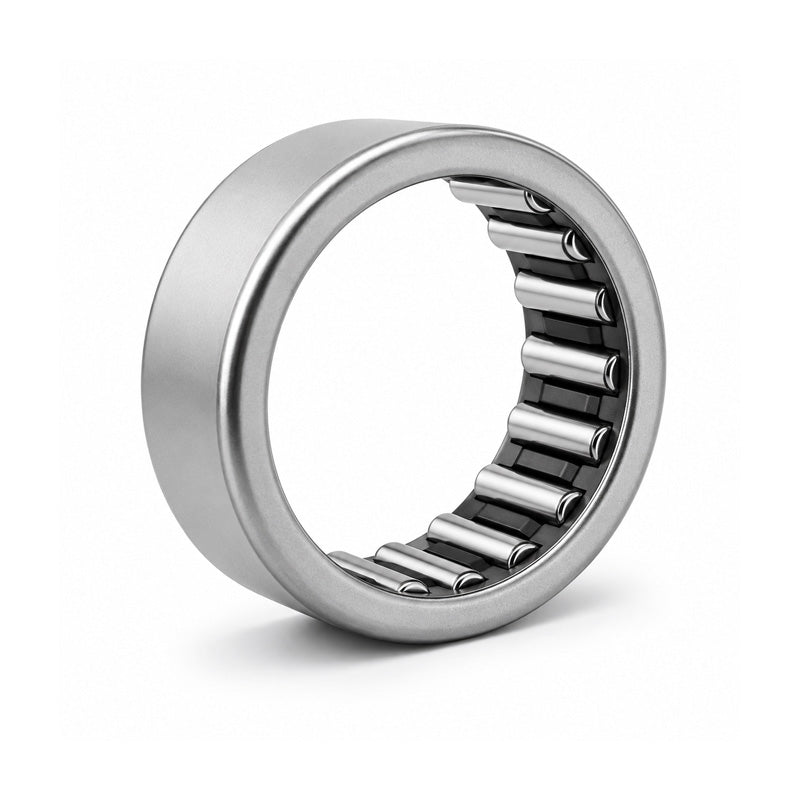

HK1616 Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x16mm
HK1616 Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x16mm
Regular price
$5.27
ex VAT
Regular price
Sale price
$5.27
ex VAT
Equivalent to: TLA1616Z RHNA162216
In stock
Price Break
10+
$3.53
19+
$3.34
29+
$3.30
39+
$3.26
49+
$3.22
74+
$3.18
99+
$2.98
199+
$2.94
249+
$2.90
499+
$2.86
999+
$2.78
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load C | 10500 N |
| Static load Co | 15600 N |
| Fatigue load limit Pu | 1800 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x16 |
| Seal | G/SD16x22x3 |
| Weight | 16 g |
