SKU: HK1622-EU

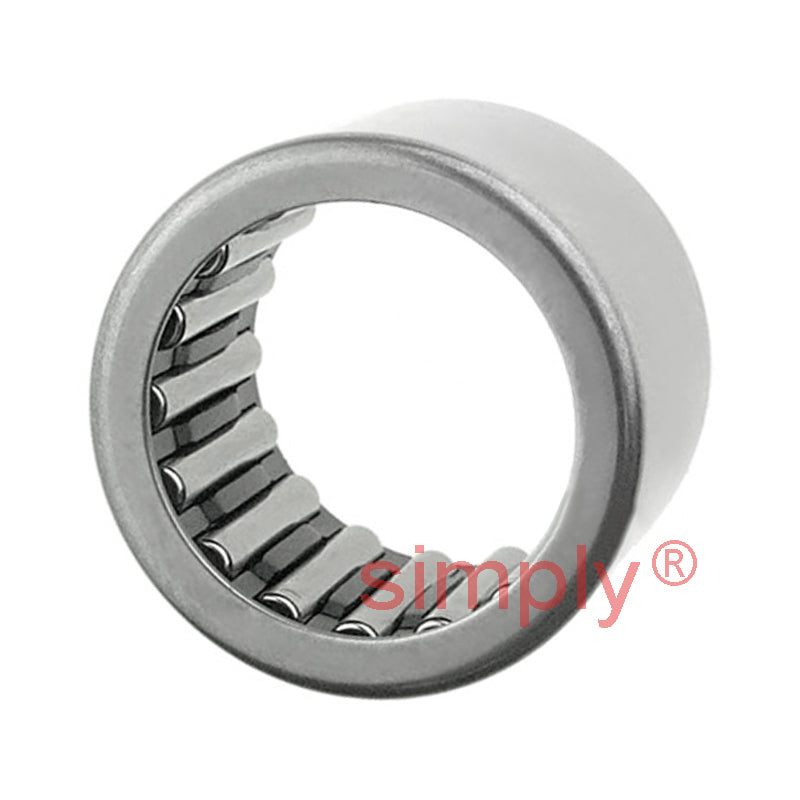

HK1622 Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x22mm
HK1622 Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x22mm
Regular price
$6.83
ex VAT
Regular price
Sale price
$6.83
ex VAT
Equivalent to: TLA1622Z RHNA162222
In stock
Price Break
10+
$4.57
19+
$4.32
29+
$4.26
39+
$4.21
49+
$4.16
74+
$4.11
99+
$3.85
199+
$3.80
249+
$3.75
499+
$3.70
999+
$3.60
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 22mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 22mm |
| Dynamic load C | 12800 N |
| Static load Co | 19600 N |
| Fatigue load limit Pu | 2240 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x22 |
| Seal | G/SD16x22x3 |
| Weight | 22 g |
