SKU: HK1622ZWD-NTN

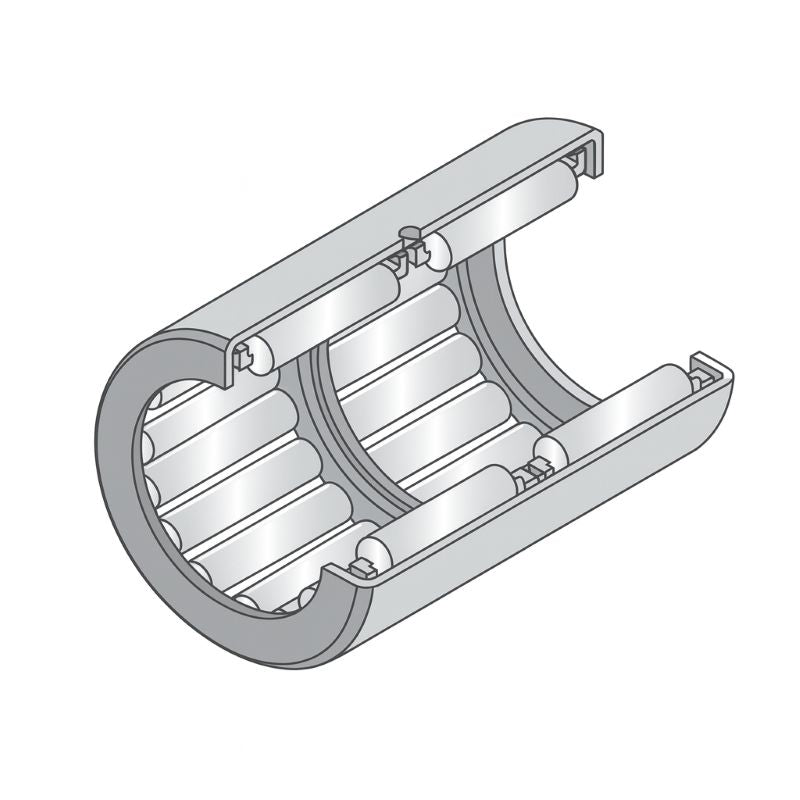

NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm

Name: NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm
Brand: NTN
SKU: HK1622ZWD-NTN
Price: 7.99 USD
Availability: InStock

$7.99 ex VAT

Sale Sold out

In stock

Price Break

3+ $5.35

4+ $5.05

9+ $4.99

19+ $4.93

49+ $4.87

99+ $4.81

499+ $4.51

999+ $4.45

1999+ $4.39

2999+ $4.33

4999+ $4.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NTN - High Quality
Inside Diameter:: 16mm
Outside Diameter:: 22mm
Width:: 22mm

Technical

Fw - Inside diameter	16mm
D - Outside diameter	22mm
C - Width of bearing, drawn cup or outer ring	22mm
Lubrication hole on outer ring?	Yes
k - Lubrication hole diameter	2.5mm
Cr - Dynamic load rating	13.3 kN
C0r - Static load rating	19.4 kN
N - Grease lubrication limit speed	10000 tr/min
N - Oil lubrication limit speed	15000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
