SKU: HK1714-MB

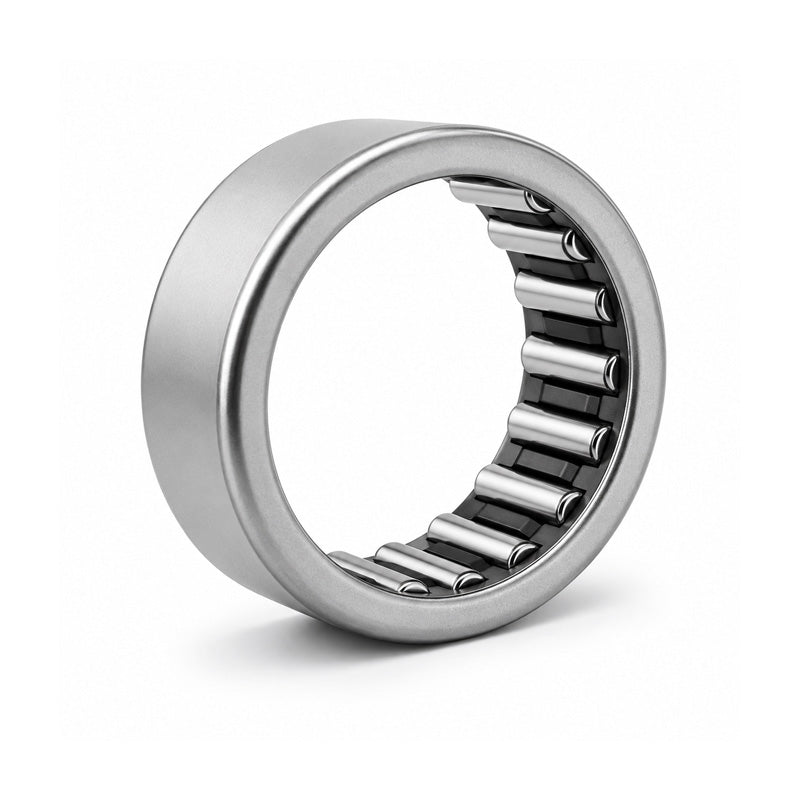

Major Brand HK1714 Drawn Cup Type Needle Roller Bearing with Two Open Ends17x23x14mm
Major Brand HK1714 Drawn Cup Type Needle Roller Bearing with Two Open Ends17x23x14mm
Regular price
$5.35
ex VAT
Regular price
Sale price
$5.35
ex VAT
In stock
Price Break
10+
$3.58
19+
$3.38
29+
$3.34
39+
$3.30
49+
$3.26
74+
$3.22
99+
$3.02
199+
$2.98
249+
$2.94
499+
$2.90
999+
$2.82
Quantity
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 23mm
- Width:
- 14mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 23mm |
| C | 14mm |
| Weight | 16 g |
