SKU: HK1816.2RS-EU

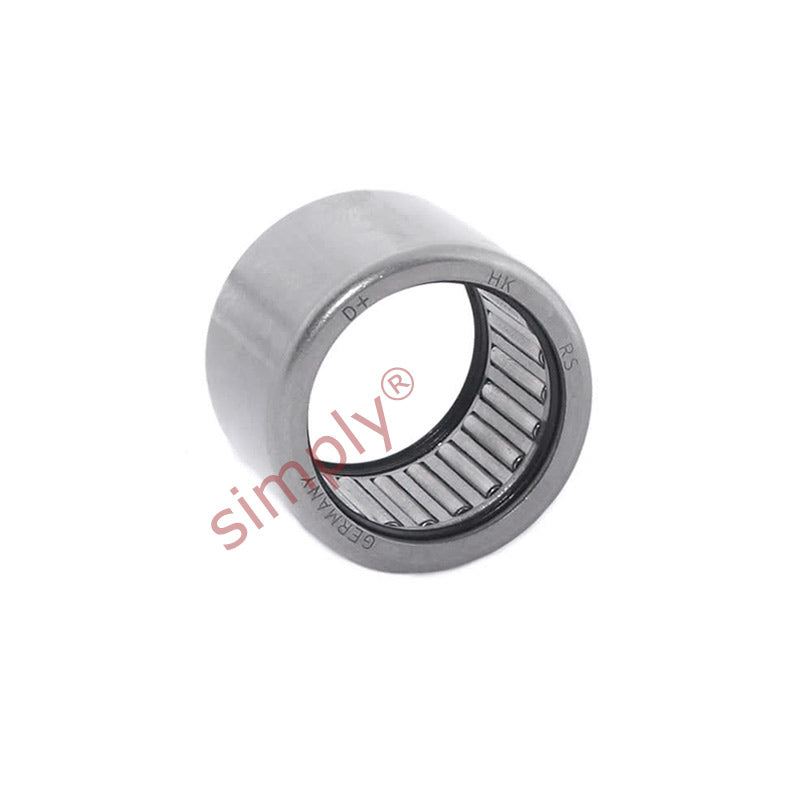

HK18162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 18x24x16mm
HK18162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 18x24x16mm
Regular price
$9.15
ex VAT
Regular price
Sale price
$9.15
ex VAT
In stock
Price Break
10+
$6.13
19+
$5.79
29+
$5.72
39+
$5.65
49+
$5.58
74+
$5.51
99+
$5.17
199+
$5.10
249+
$5.03
499+
$4.96
999+
$4.82
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 16mm |
| Dynamic load C | 7920 N |
| Static load Co | 11200 N |
| Fatigue load limit Pu | 1270 N |
| Speed in grease | 9500 rpm |
| r1r2 min | 0.8mm |
| Da max | 19mm |
| ra max | 0.8mm |
| Inner ring | LR/IR15x18x16.5 |
| Weight | 15 g |
