SKU: HK2012-EU
HK2012 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x12mm
HK2012 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x12mm
Regular price
$5.33
ex VAT
Regular price
Sale price
$5.33
ex VAT
Equivalent to: TLA2012Z RHNA202612
In stock
Price Break
10+
$3.56
19+
$3.36
29+
$3.32
39+
$3.28
49+
$3.24
74+
$3.20
99+
$3.00
199+
$2.96
249+
$2.92
499+
$2.88
999+
$2.80
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 12mm
Technical
Technical

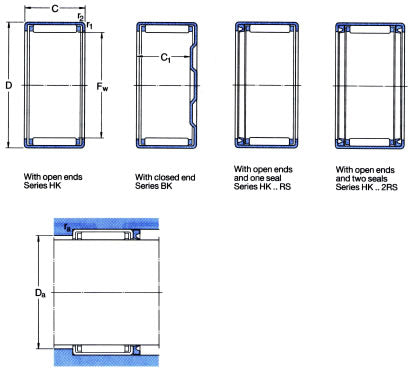

| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 12mm |
| Dynamic load C | 8420 N |
| Static load Co | 12500 N |
| Fatigue load limit Pu | 1400 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 min | 0.8mm |
| Da max | 20.8mm |
| ra max | 0.8mm |
| Inner ring | IR15x20x13 |
| Seal | G/SD20x26x4 |
| Weight | 14 g |
