SKU: HK2016-EU

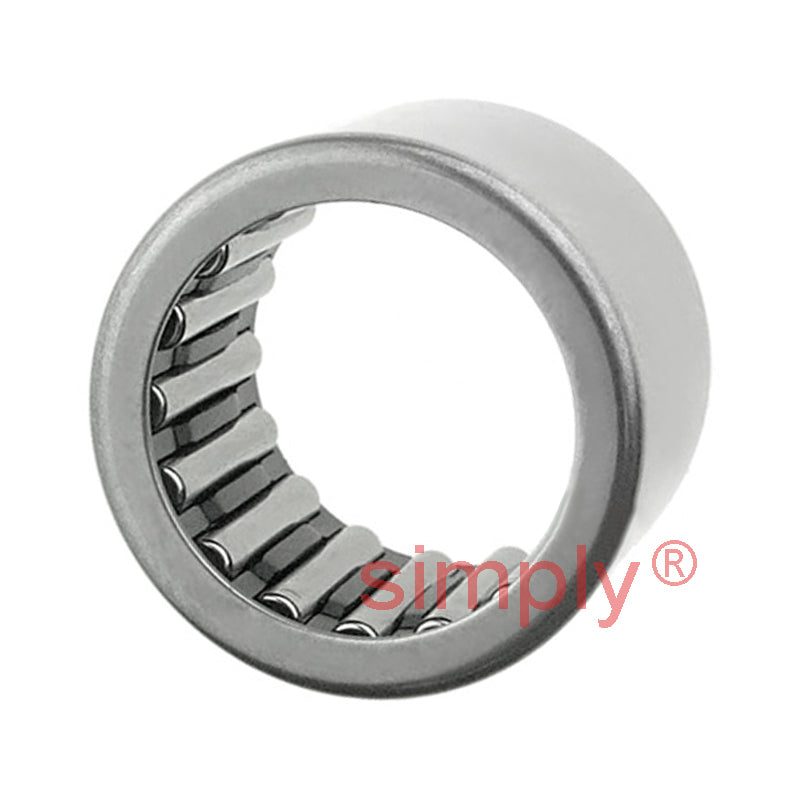

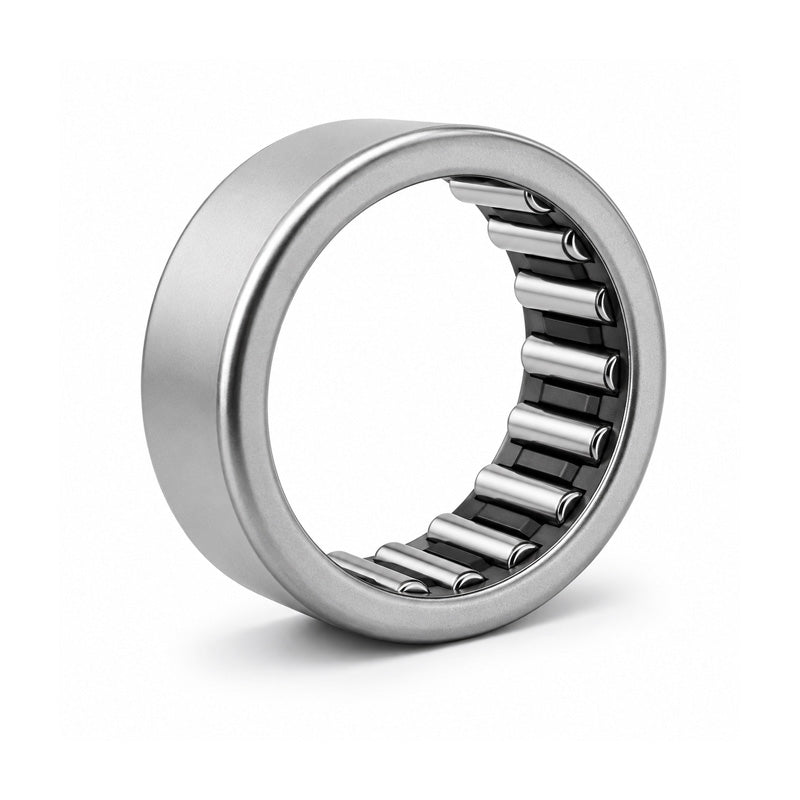

HK2016 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x16mm
HK2016 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x16mm
Regular price
$6.64
ex VAT
Regular price
Sale price
$6.64
ex VAT
Equivalent to: TLA2016Z RHNA202616
In stock
Price Break
10+
$4.45
19+
$4.20
29+
$4.15
39+
$4.10
49+
$4.05
74+
$4.00
99+
$3.75
199+
$3.70
249+
$3.65
499+
$3.60
999+
$3.50
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 16mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 16mm |
| Dynamic load C | 12300 N |
| Static load Co | 20400 N |
| Fatigue load limit Pu | 2360 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 min | 0.8mm |
| Da max | 20.8mm |
| ra max | 0.8mm |
| Inner ring | IR17x20x16.5 |
| Seal | G/SD20x26x4 |
| Weight | 19 g |
