SKU: HK2030ZWD-NTN

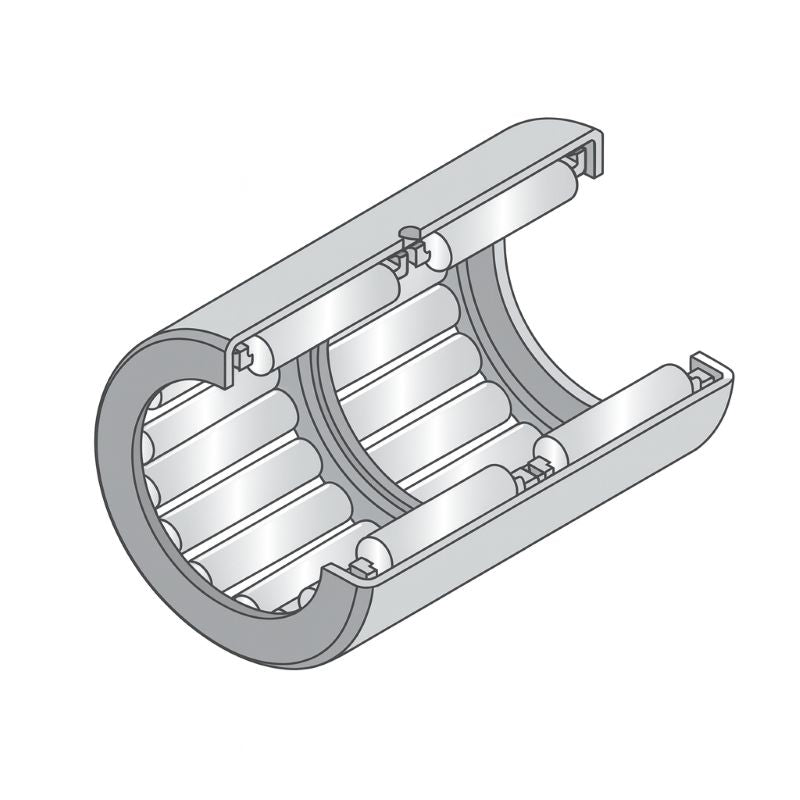

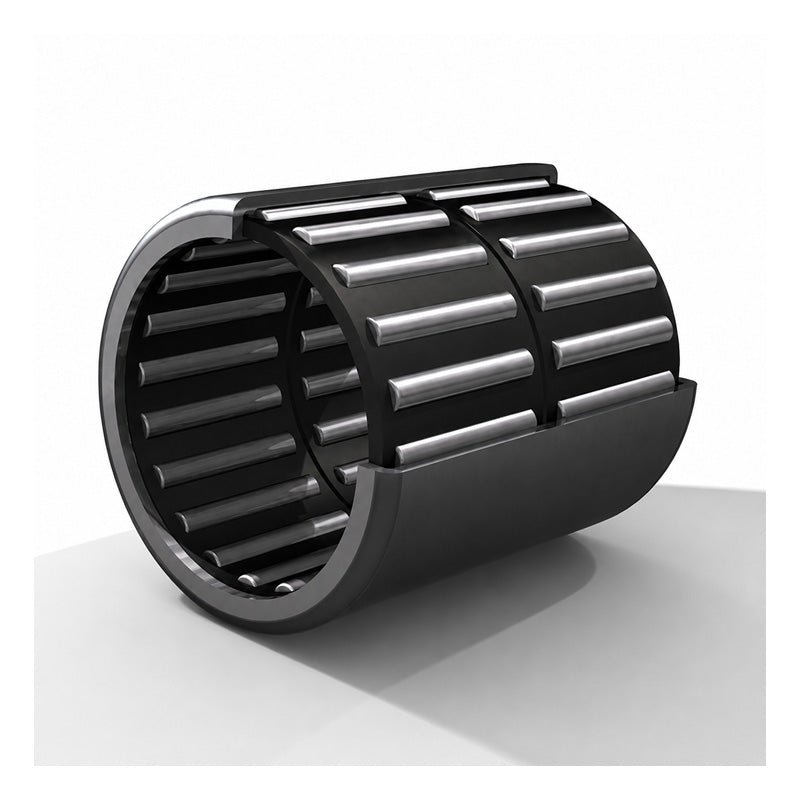

NTN HK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 20x26x30mm

Name: NTN HK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 20x26x30mm
Brand: NTN
SKU: HK2030ZWD-NTN
Price: 9.37 USD
Availability: InStock

$9.37 ex VAT

Sale Sold out

In stock

Price Break

3+ $6.27

4+ $5.92

9+ $5.85

19+ $5.78

49+ $5.71

99+ $5.64

499+ $5.29

999+ $5.22

1999+ $5.15

2999+ $5.08

4999+ $4.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NTN - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 26mm
Width:: 30mm

Technical

Fw - Inside diameter	20mm
D - Outside diameter	26mm
C - Width of bearing, drawn cup or outer ring	30mm
Lubrication hole on outer ring?	Yes
k - Lubrication hole diameter	2.5mm
Inner ring reference	IR17X20X30.5
Cr - Dynamic load rating	22.2 kN
C0r - Static load rating	40 kN
N - Grease lubrication limit speed	8000 tr/min
N - Oil lubrication limit speed	12000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
