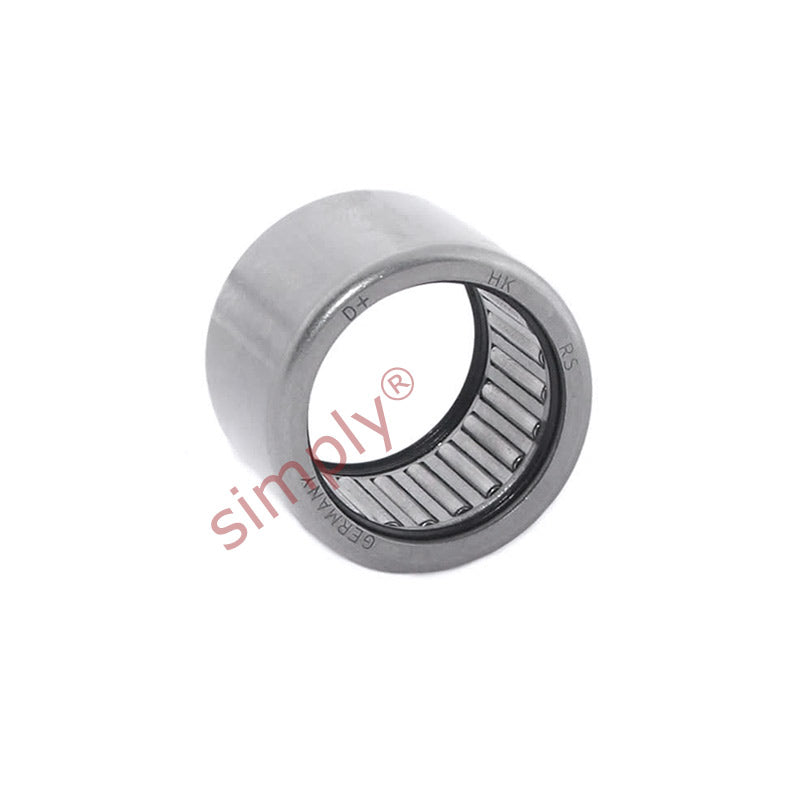

• HK2214RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x14mm
1 1

SKU: HK2214RS-EU

HK2214RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x14mm

HK2214RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x14mm
$8.89 ex VAT
$8.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $5.95
19+ $5.62
29+ $5.55
39+ $5.48
49+ $5.42
74+ $5.35
99+ $5.01
199+ $4.95
249+ $4.88
499+ $4.81
999+ $4.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22mm
Outside Diameter:
28mm
Width:
14mm
Seals / Shields:
Rubber Sealed
Technical
Fw 22mm
D 28mm
C 14mm
Dynamic load C 8800 N
Static load Co 13700 N
Fatigue load limit Pu 1560 N
Speed in grease 8000 rpm
r1r2 min 0.8mm
Da max 23mm
ra max 0.8mm
Inner ring IR17x22x16
Weight 16 g
