SKU: HK2220.2RS-EU

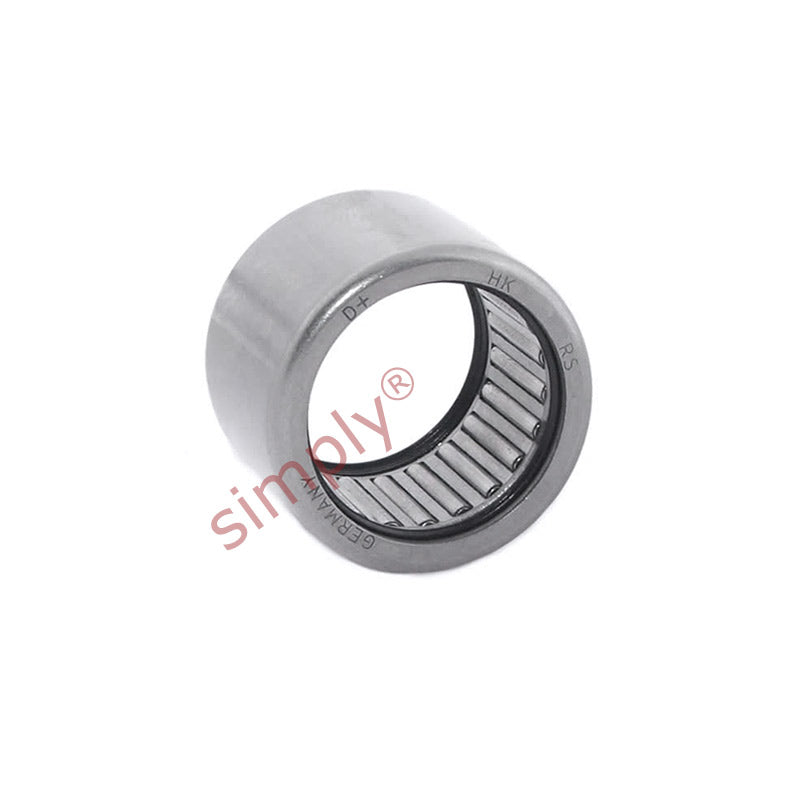

HK22202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x20mm
HK22202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x20mm
Regular price
$10.67
ex VAT
Regular price
Sale price
$10.67
ex VAT
In stock
Price Break
10+
$7.15
19+
$6.75
29+
$6.67
39+
$6.59
49+
$6.51
74+
$6.43
99+
$6.03
199+
$5.94
249+
$5.86
499+
$5.78
999+
$5.62
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 20mm |
| Dynamic load C | 13000 N |
| Static load Co | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x23 |
| Weight | 26 g |
