SKU: HK2220-EU

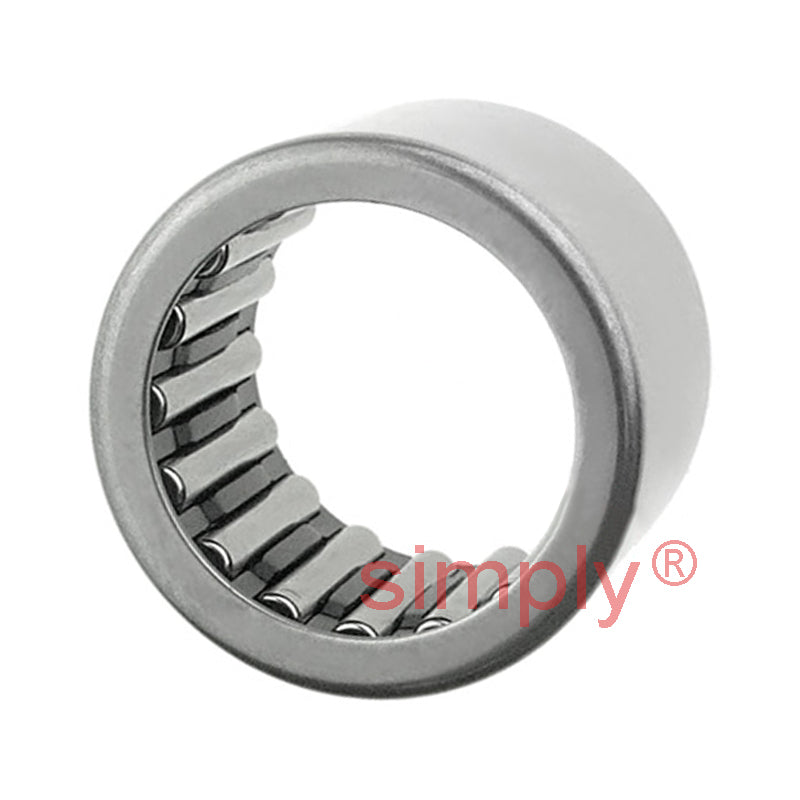

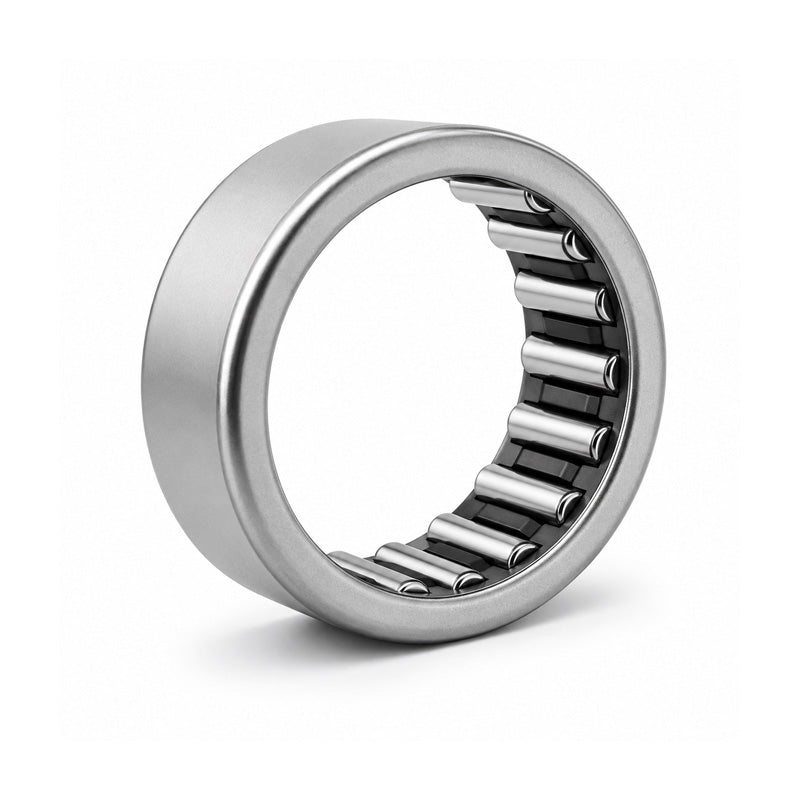

HK2220 Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x20mm
HK2220 Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x20mm
Regular price
$6.71
ex VAT
Regular price
Sale price
$6.71
ex VAT
Equivalent to: TLA2220Z RHNA222820
In stock
Price Break
10+
$4.49
19+
$4.24
29+
$4.19
39+
$4.14
49+
$4.09
74+
$4.04
99+
$3.79
199+
$3.73
249+
$3.68
499+
$3.63
999+
$3.53
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 20mm |
| Dynamic load C | 15700 N |
| Static load Co | 29000 N |
| Fatigue load limit Pu | 3450 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x23 |
| Seal | G/SD22x28x4 |
| Weight | 26 g |
