• NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
  • NTN
1 2

SKU: HK3038ZWD-NTN

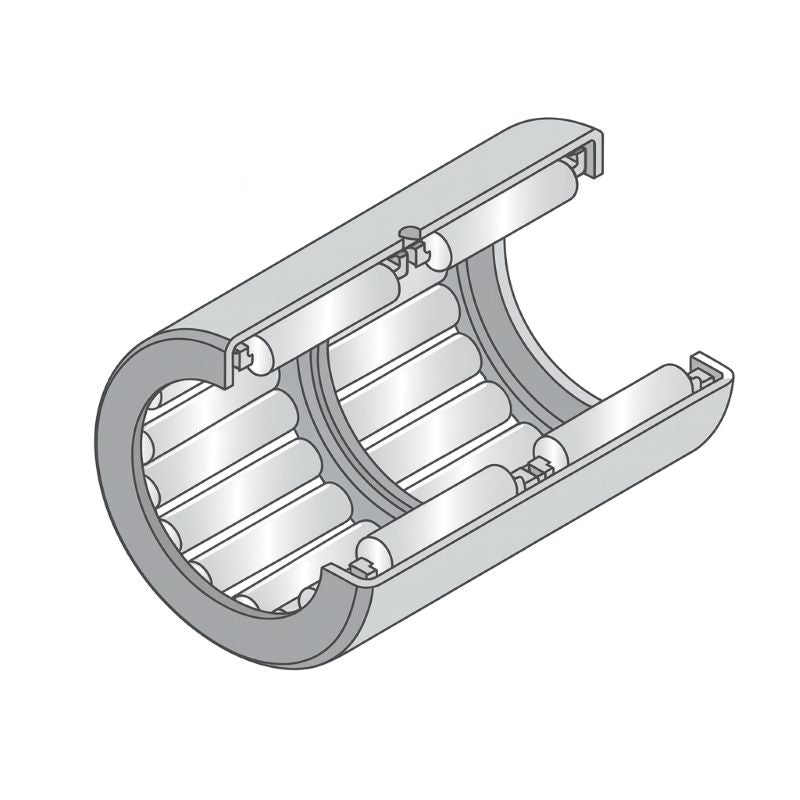

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
$11.83 ex VAT
$11.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $7.92
4+ $7.48
9+ $7.39
19+ $7.30
49+ $7.21
99+ $7.12
499+ $6.68
999+ $6.59
1999+ $6.50
2999+ $6.41
4999+ $6.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
37mm
Width:
38mm
Technical
Fw - Inside diameter 30mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 38mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR25X30X38.5
Cr - Dynamic load rating 38.5 kN
C0r - Static load rating 78.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
