SKU: HK3518RS-MB

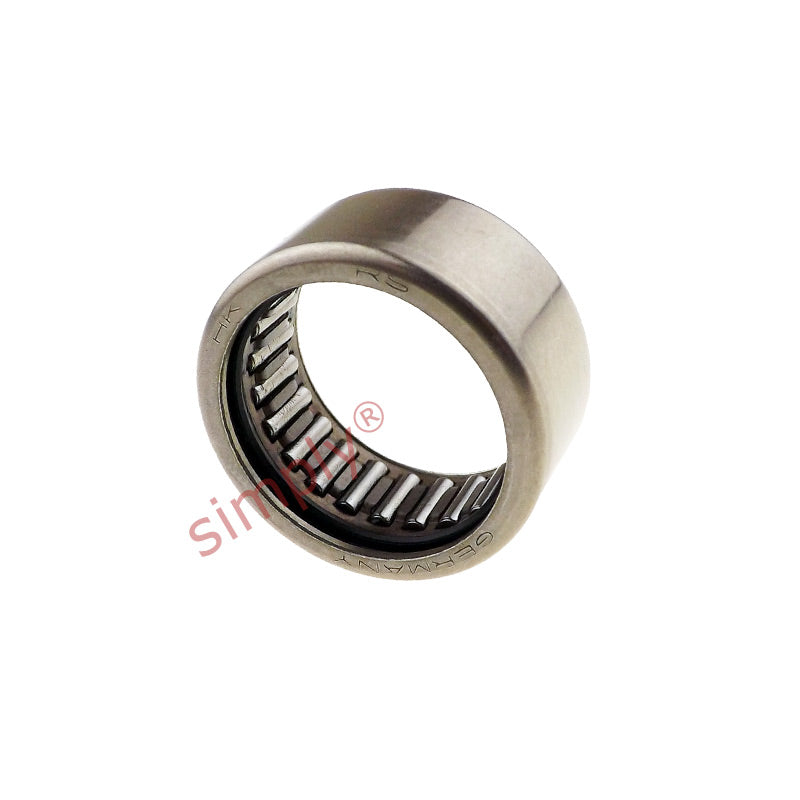

Major Brand HK3518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 35x42x18mm
- Regular price
- $16.06 ex VAT
- Sale price
- $16.06
- Regular price
-
In stock
Quantity Price Breaks
10
$14.29
19
$13.49
29
$13.33
39
$13.17
49
$13.01
74
$12.85
99
$12.05
199
$11.88
249
$11.72
499
$11.56
999
$11.24
SKU:
HK3518RS-MB
Major Brand HK3518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 35x42x18mm
- Regular price
- $16.06 ex VAT
- Sale price
- $16.06
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 35mm |
| D | = | 42mm |
| C | = | 18mm |
| Dynamic load | = | 17900 N |
| Static load | = | 34000 N |
| Fatigue load limit Pu | = | 4000 N |
| Speed in grease | = | 5300 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 37mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR30x35x20.5 |
| Weight | = | 39 g |
