SKU: HK4018RS-MB

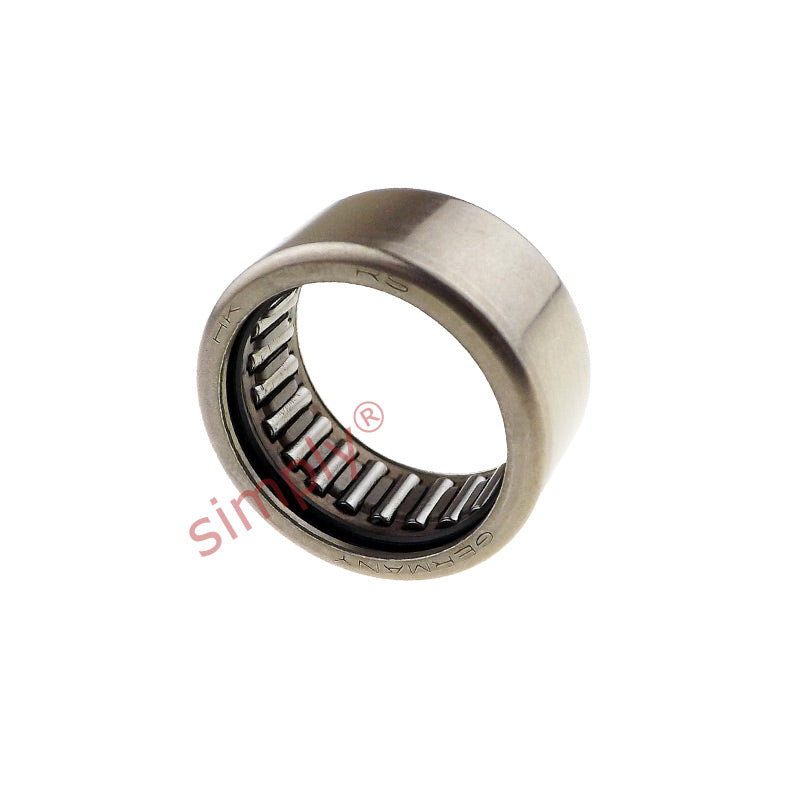

Major Brand HK4018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 40x47x18mm
- Regular price
- $18.66 ex VAT
- Sale price
- $18.66
- Regular price
-
In stock
Quantity Price Breaks
10
$16.61
19
$15.67
29
$15.49
39
$15.30
49
$15.11
74
$14.93
99
$14.00
199
$13.81
249
$13.62
499
$13.44
999
$13.06
SKU:
HK4018RS-MB
Major Brand HK4018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 40x47x18mm
- Regular price
- $18.66 ex VAT
- Sale price
- $18.66
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 40mm |
| D | = | 47mm |
| C | = | 18mm |
| Dynamic load | = | 19000 N |
| Static load | = | 39000 N |
| Fatigue load limit Pu | = | 4550 N |
| Speed in grease | = | 4500 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 42mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR35x40x20.5 |
| Weight | = | 45 g |
