SKU: HK4518L/3AS-NTN

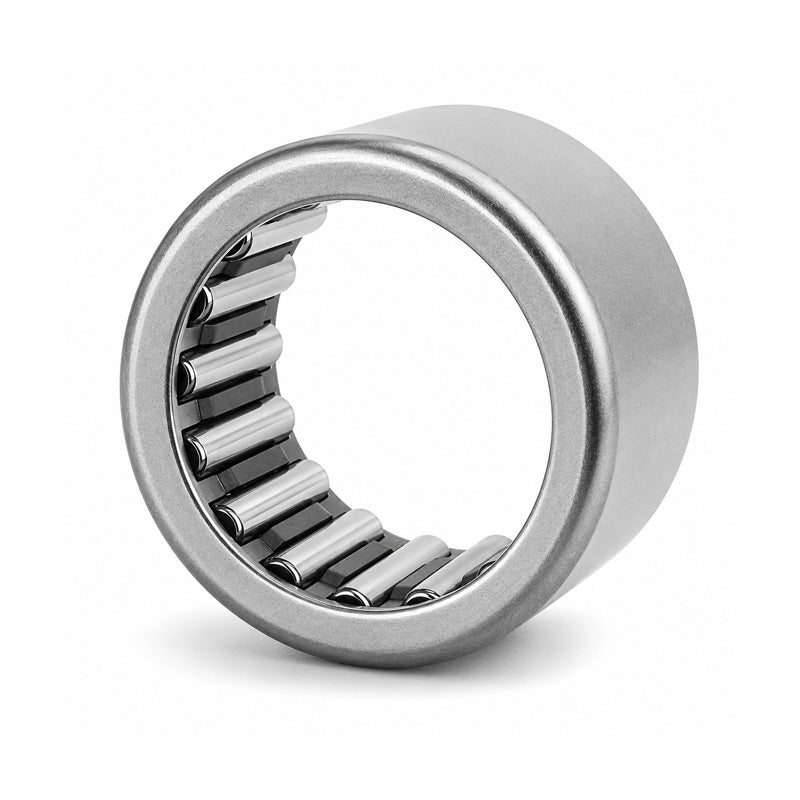

NTN HK4518L/3AS Drawn Cup Needle Roller Bearing with Open End 45x52x18mm - Allow 2-3 Days

NTN HK4518L/3AS Drawn Cup Needle Roller Bearing with Open End 45x52x18mm - Allow 2-3 Days
Regular price $10.29 ex VAT
Regular price Sale price $10.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $7.66
4+ $7.35
9+ $7.20
19+ $6.97
49+ $6.81
99+ $6.42
499+ $5.42
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 45mm
D - Outside diameter 52mm
C1 - Width of Drawn cup L 18mm
C3 - Max drawn cup closed end thickness LL 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR40X45X20
Cr - Dynamic load rating 21.6 kN
C0r - Static load rating 43 kN
N - Grease lubrication limit speed 3600 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
