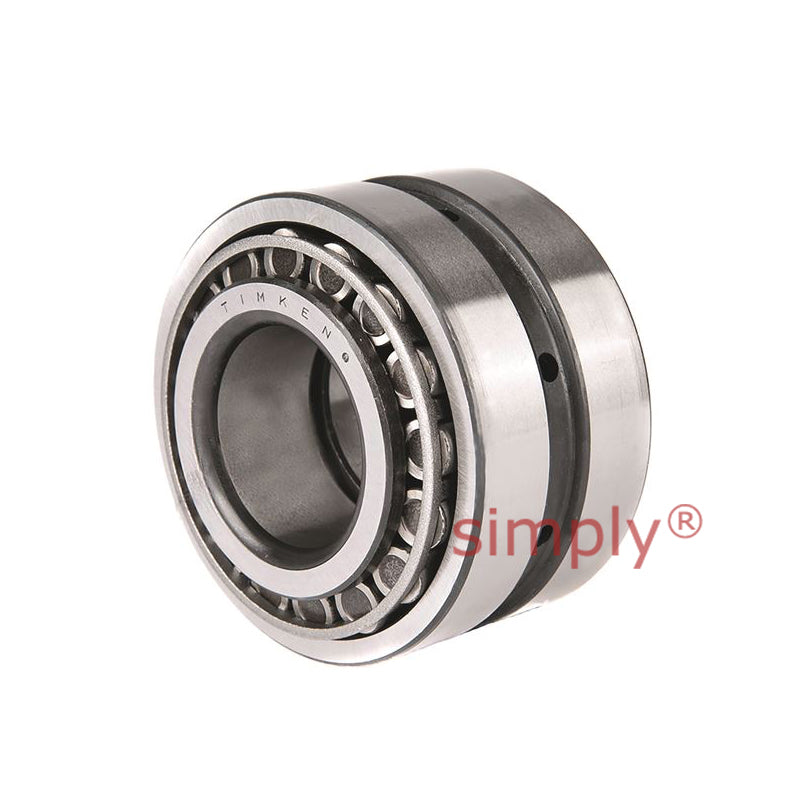

Timken HM124646/HM124618XD TDO Double Outer Race Taper Roller Bearing 4.6875x7.6875x5.385x5.625 inch
Timken HM124646/HM124618XD TDO Double Outer Race Taper Roller Bearing 4.6875x7.6875x5.385x5.625 inch
Out of stock
Description
Description

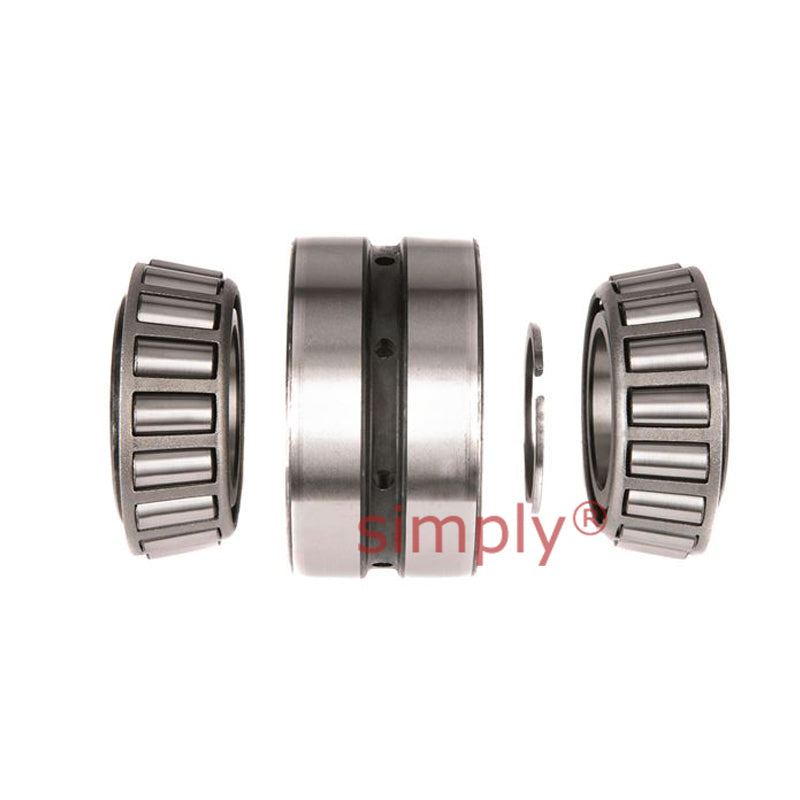

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 119.06mm = 4.6875 inch
- Outside Diameter:
- 195.26mm = 7.6875 inch
- Width:
- 136.78mm = 5.385 inch
Technical
Technical
| d | 119.062mm = 4.6875 inch |
|---|---|
| D | 195.262mm = 7.6875 inch |
| T | 136.779mm = 5.385 inch |
| C | 142.875mm = 5.625 inch |
| Dynamic (1) C1 | 662000N |
| Factors (5) e | 0.26 |
| Factors (5) Y1 | 2.55 |
| Factors (5) Y2 | 3.8 |
| Dynamic (2) C90 | 98600N |
| Dynamic (2) Ca90 | 44600N |
| Dynamic (2) C90(2) | 172000N |
| Factors (5) K | 2.21 |
| Shaft max shaft fillet radius R(3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter db | 131mm = 5.16 inch |
| Housing max shaft fillet radius r(3) | 1mm = 0.04 inch |
| Housing backing shoulder diameter Da | 183mm = 7.2 inch |
| G1 | 340 |
| G2 | 69.2 |
| Cg | 0.1076 |
