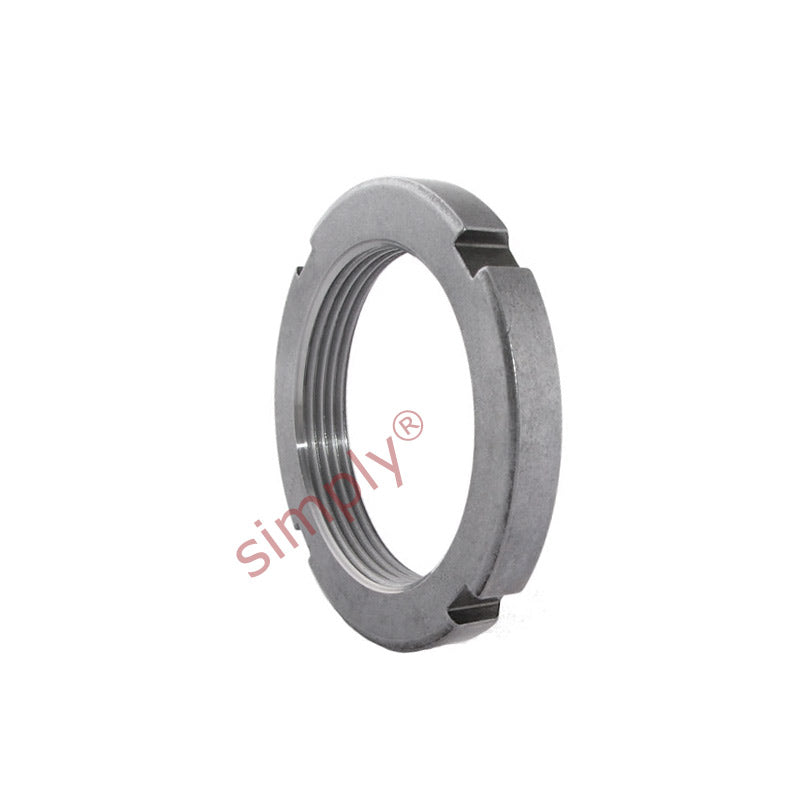

• HM3160 Locknut with Metric Trapezoidal Threads 300x380x40mm
1 1

SKU: HM3160-MB

HM3160 Locknut with Metric Trapezoidal Threads 300x380x40mm

HM3160 Locknut with Metric Trapezoidal Threads 300x380x40mm
$1,176.79 ex VAT
$1,176.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $788.25
19+ $743.97
29+ $735.11
39+ $726.25
49+ $717.40
74+ $708.54
99+ $664.25
199+ $655.40
249+ $646.54
499+ $637.68
999+ $619.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
M300x4
Technical
Thread Pitch G Tr300x4
d1 340mm
d2 326mm
D 380mm
B 40mm
b 24mm
h 12mm
Weight 11.5 kg
