• HM3164 Locknut with Metric Trapezoidal Threads 320x400x42mm
1 1

SKU: HM3164-MB

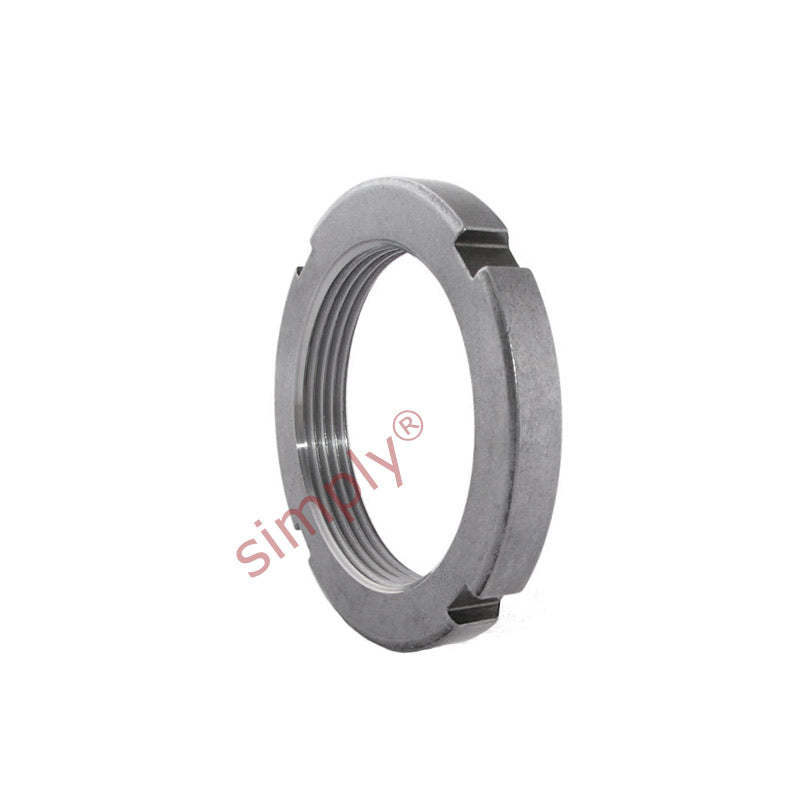

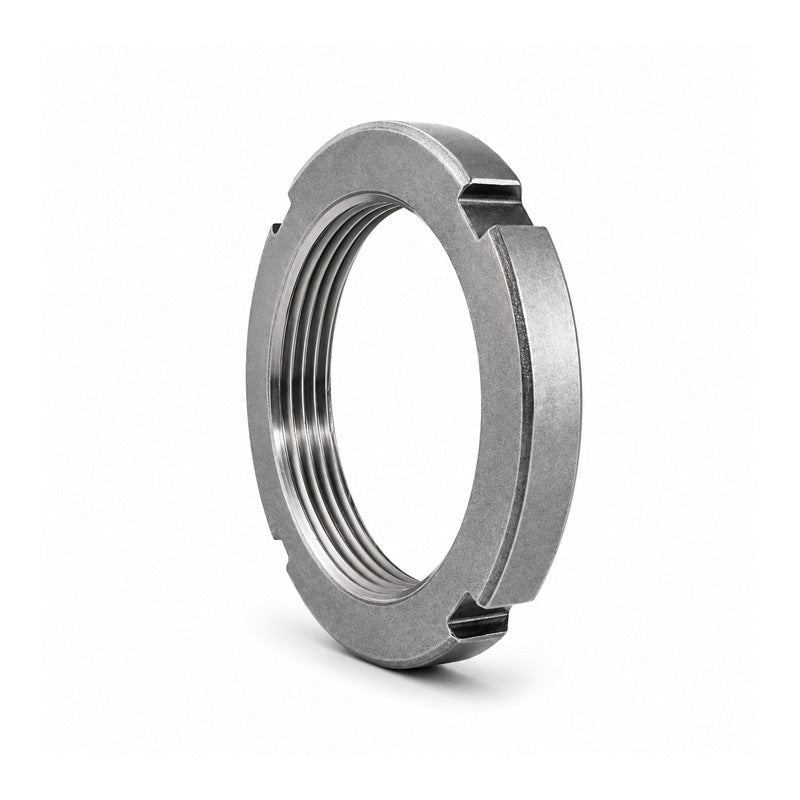

HM3164 Locknut with Metric Trapezoidal Threads 320x400x42mm

HM3164 Locknut with Metric Trapezoidal Threads 320x400x42mm
$1,775.23 ex VAT
$1,775.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,188.92
19+ $1,122.13
29+ $1,108.77
39+ $1,095.41
49+ $1,082.05
74+ $1,068.70
99+ $1,001.90
199+ $988.54
249+ $975.18
499+ $961.83
999+ $935.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
M320x5
Technical
Thread Pitch G Tr320x5
d1 360mm
d2 346mm
D 400mm
B 42mm
b 24mm
h 12mm
Weight 13 kg
