SKU: HM746646/HM746610CD/HM746646XC-TIM

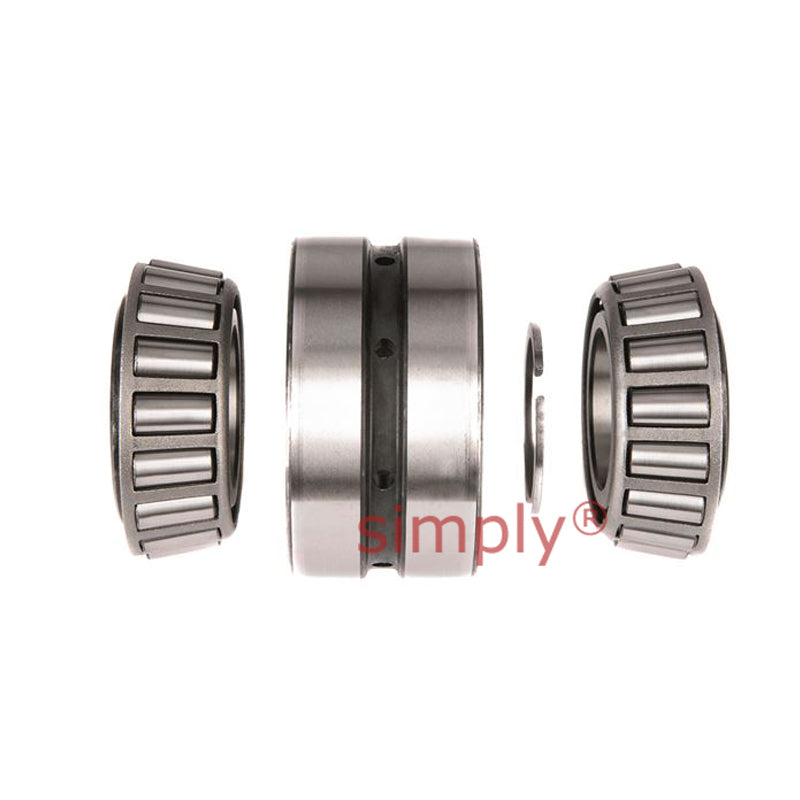

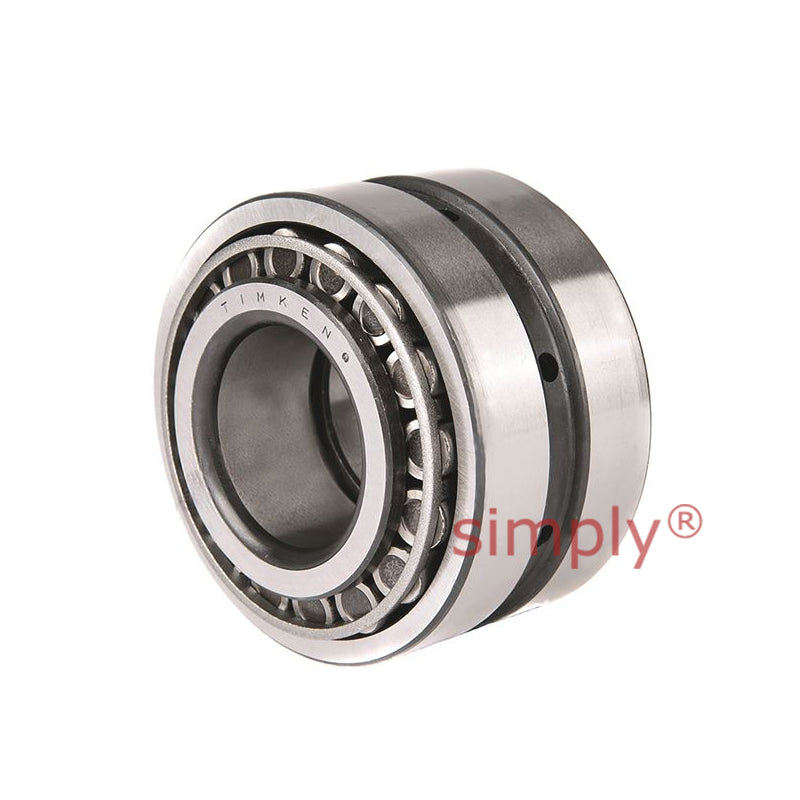

Timken HM746646/HM746610CD/HM746646XC TDO Double Outer Race Taper Roller Bearing 9x14x6x4.5 inch
Timken HM746646/HM746610CD/HM746646XC TDO Double Outer Race Taper Roller Bearing 9x14x6x4.5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 228.60mm = 9 inch
- Outside Diameter:
- 355.60mm = 14 inch
- Width:
- 152.40mm = 6 inch
Technical
Technical
| d | 228.6mm = 9 inch |
|---|---|
| D | 355.6mm = 14 inch |
| T | 152.4mm = 6 inch |
| C | 114.3mm = 4.5 inch |
| Dynamic (1) C1 | 1620000N |
| Factors (5) e | 0.47 |
| Factors (5) Y1 | 1.43 |
| Factors (5) Y2 | 2.12 |
| Dynamic (2) C90 | 242000N |
| Dynamic (2) Ca90 | 196000N |
| Dynamic (2) C90(2) | 421000N |
| Factors (5) K | 1.24 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 258mm = 10.16 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 339mm = 13.34 inch |
| Pin Ka | 25.4mm = 1 inch |
| Pin Kb | 9.4mm = 0.37 inch |
| G1 | 1190 |
| G2 | 149 |
| Cg | 0.1542 |
