SKU: HMK1012L/3AS-NTN
NTN HMK1012L/3AS Drawn Cup Needle Roller Bearing with Open End 10x17x12mm
NTN HMK1012L/3AS Drawn Cup Needle Roller Bearing with Open End 10x17x12mm
Regular price
$7.08
ex VAT
Regular price
Sale price
$7.08
ex VAT
In stock
Price Break
3+
$4.74
4+
$4.48
9+
$4.42
19+
$4.37
49+
$4.32
99+
$4.26
499+
$4.00
999+
$3.94
1999+
$3.89
2999+
$3.84
4999+
$3.73
Quantity
Couldn't load pickup availability
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 12mm
Technical
Technical

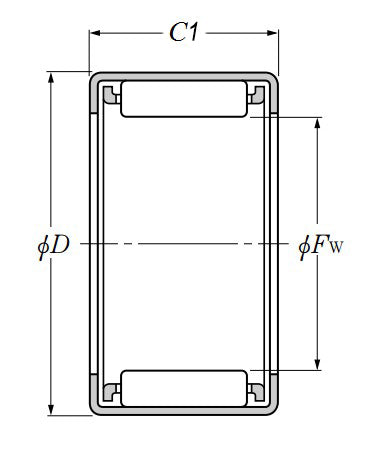

| Fw - Inside diameter | 10mm |
|---|---|
| D - Outside diameter | 17mm |
| C1 - Width of Drawn cup L | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR7X10X16 |
| Cr - Dynamic load rating | 4.25 kN |
| C0r - Static load rating | 3.45 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
