SKU: HMK2030-NTN

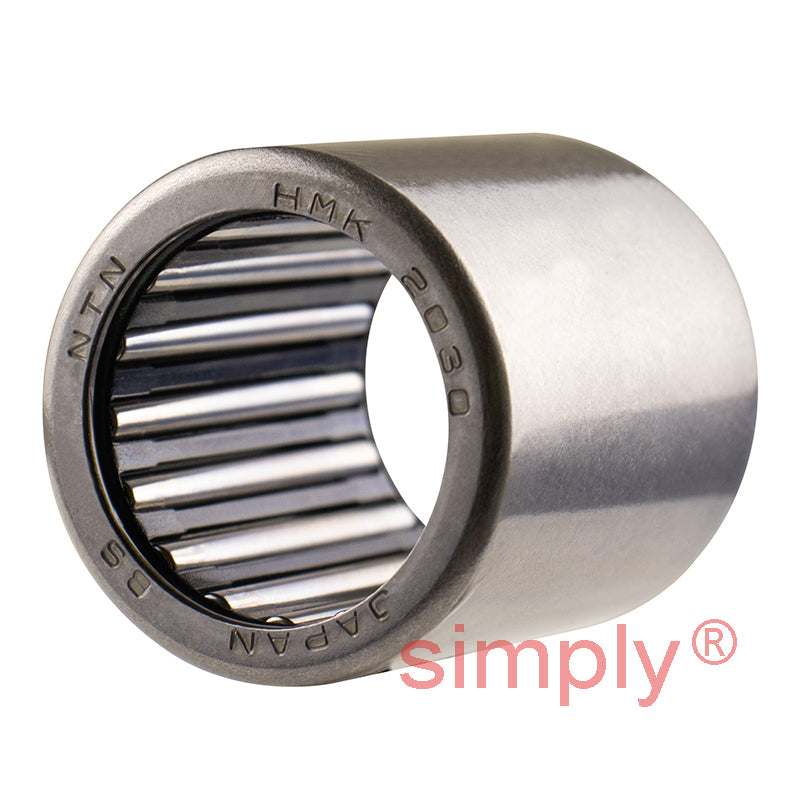

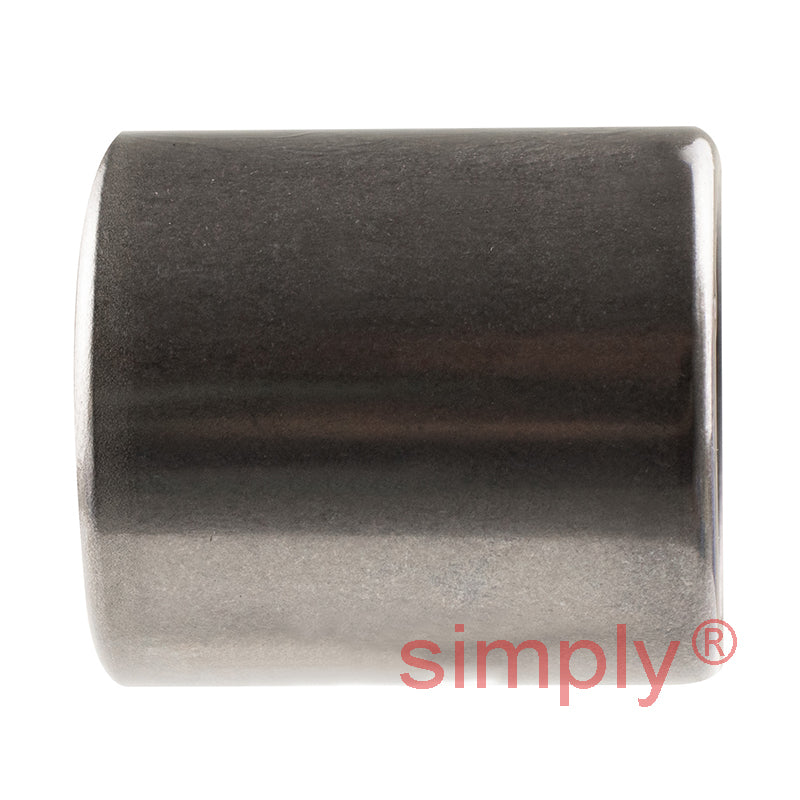

NTN HMK2030 Drawn Cup Needle Roller Bearing with Open End 20x27x30mm

Name: NTN HMK2030 Drawn Cup Needle Roller Bearing with Open End 20x27x30mm
Brand: NTN
SKU: HMK2030-NTN
Price: 11.19 USD
Availability: InStock

$11.19 ex VAT

Sale Sold out

In stock

Price Break

3+ $7.49

4+ $7.07

9+ $6.99

19+ $6.90

49+ $6.82

99+ $6.74

499+ $6.32

999+ $6.23

1999+ $6.15

2999+ $6.06

4999+ $5.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NTN - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 27mm
Width:: 30mm

Technical

Fw - Inside diameter	20mm
D - Outside diameter	27mm
C - Width of bearing, drawn cup or outer ring	30mm
Lubrication hole on outer ring?	No
Inner ring reference	IR17X20X30.5
Cr - Dynamic load rating	26.1 kN
C0r - Static load rating	42 kN
N - Grease lubrication limit speed	8000 tr/min
N - Oil lubrication limit speed	12000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
