SKU: HMK3030-NTN

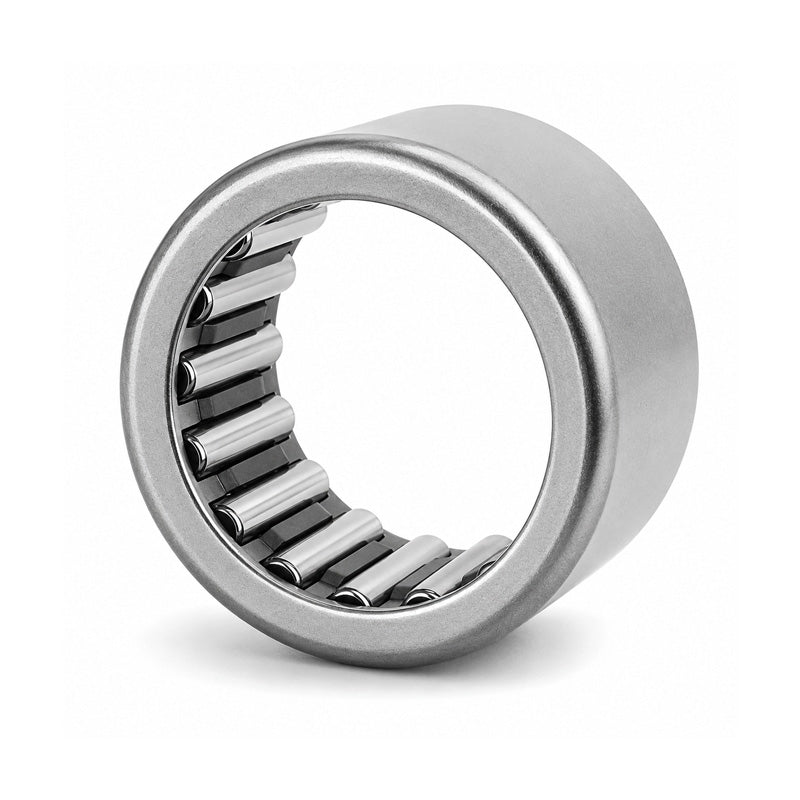

NTN HMK3030 Drawn Cup Needle Roller Bearing with Open End 30x40x30mm - Allow 2-3 Days

NTN HMK3030 Drawn Cup Needle Roller Bearing with Open End 30x40x30mm - Allow 2-3 Days
Regular price $17.65 ex VAT
Regular price Sale price $17.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.15
4+ $12.62
9+ $12.35
19+ $11.95
49+ $11.69
99+ $11.02
499+ $9.30
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 30mm
D - Outside diameter 40mm
C - Width of bearing, drawn cup or outer ring 30mm
Lubrication hole on outer ring? No
Inner ring reference IR25X30X32
Cr - Dynamic load rating 36 kN
C0r - Static load rating 57.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
