SKU: HMK3512-NTN

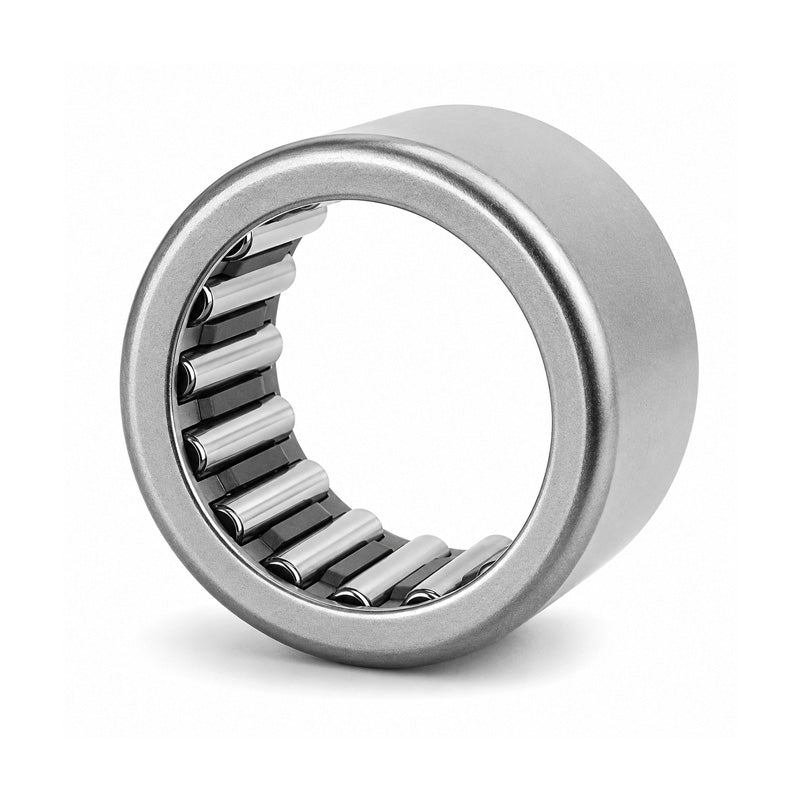

NTN HMK3512 Drawn Cup Needle Roller Bearing with Open End 35x45x12mm - Allow 2-3 Days

NTN HMK3512 Drawn Cup Needle Roller Bearing with Open End 35x45x12mm - Allow 2-3 Days
Regular price $13.22 ex VAT
Regular price Sale price $13.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $9.85
4+ $9.45
9+ $9.25
19+ $8.96
49+ $8.76
99+ $8.26
499+ $6.97
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 35mm
D - Outside diameter 45mm
C - Width of bearing, drawn cup or outer ring 12mm
Lubrication hole on outer ring? No
Cr - Dynamic load rating 14.9 kN
C0r - Static load rating 17.6 kN
N - Grease lubrication limit speed 4700 tr/min
N - Oil lubrication limit speed 7000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
