SKU: HMK4040ZWD-NTN

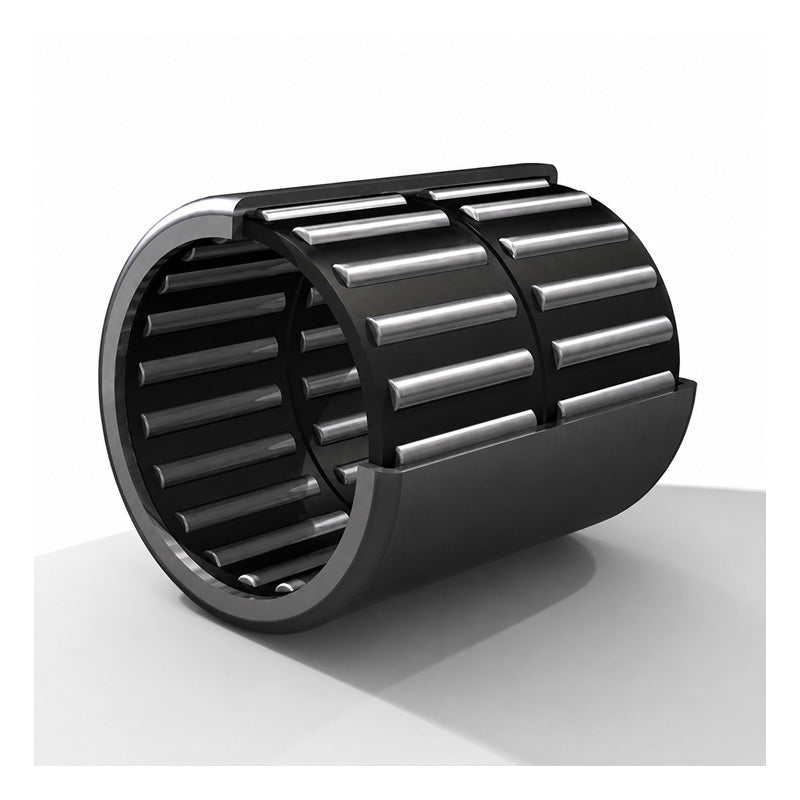

NTN HMK4040ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 40x50x40mm - Allow 2-3 Days

NTN HMK4040ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 40x50x40mm - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

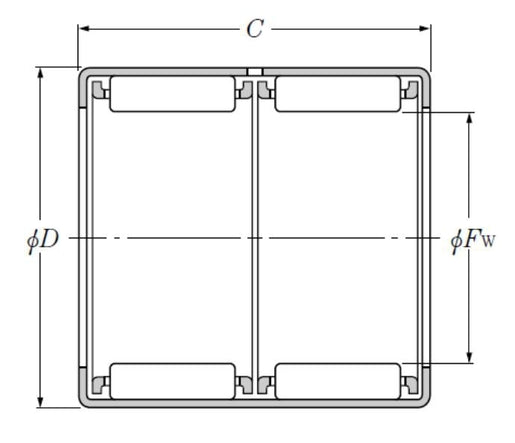

Fw - Inside diameter 40mm
D - Outside diameter 50mm
C - Width of bearing, drawn cup or outer ring 40mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Cr - Dynamic load rating 58.5 kN
C0r - Static load rating 107 kN
N - Grease lubrication limit speed 4000 tr/min
N - Oil lubrication limit speed 6000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
