SKU: HMV-60-EBF-HN-SNR

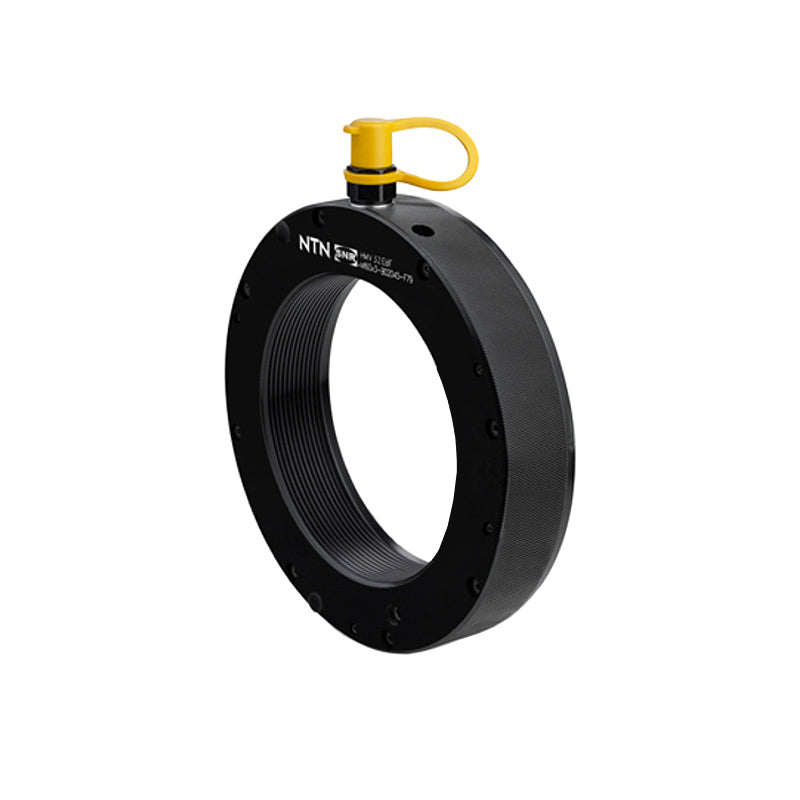

SNR HMV60 Metric Hydraulic Nut with Tr300x4 Thread - Allow 2-3 Days
SNR HMV60 Metric Hydraulic Nut with Tr300x4 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr300x4
- Inside Diameter:
- 302mm
- Outside Diameter:
- 404mm
- Width:
- 61mm
- Flange Width:
- 10mm
Technical
Technical
| HMV | HMV60 |
|---|---|
| Thread G | Tr300x4 |
| Outside Diameter D | 404mm |
| Total Width B | 61mm |
| Piston Diameter max. d2 | 400mm |
| Permitted Piston Stroke | 14mm |
| Flange Width B1 | 10mm |
| Body Width B2 | 51mm |
| Diameter d1 | 302mm |
| Piston Surface Area | 23600mm2 |
| Weight | 25.7kg |
