SKU: HMV-76-EBF-HN-SNR

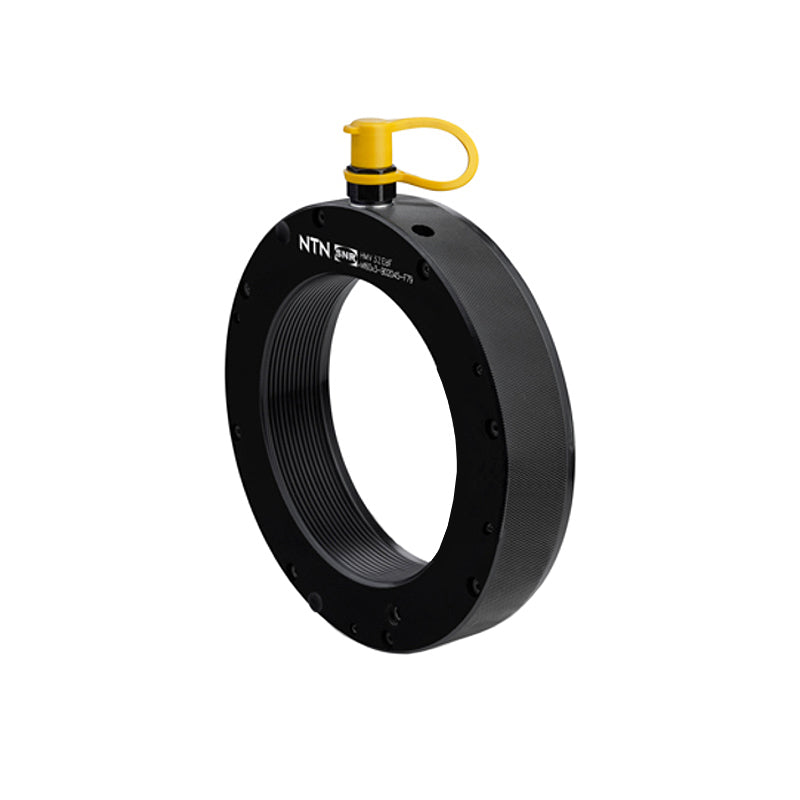

SNR HMV76 Metric Hydraulic Nut with Tr380x5 Thread - Allow 2-3 Days
SNR HMV76 Metric Hydraulic Nut with Tr380x5 Thread - Allow 2-3 Days
Regular price
$6,019.38
ex VAT
Regular price
Sale price
$6,019.38
ex VAT
In stock
Price Break
3+
$4,303.13
5+
$4,076.65
9+
$3,850.17
19+
$3,623.69
49+
$3,533.10
74+
$3,442.50
99+
$2,989.54
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr380x5
- Inside Diameter:
- 382mm
- Outside Diameter:
- 498mm
- Width:
- 69mm
- Flange Width:
- 11mm
Technical
Technical

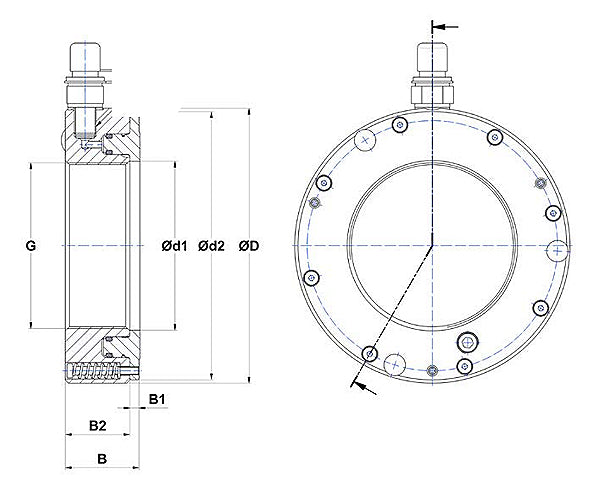

| HMV | HMV76 |
|---|---|
| Thread G | Tr380x5 |
| Outside Diameter D | 498mm |
| Total Width B | 69mm |
| Piston Diameter max. d2 | 494mm |
| Permitted Piston Stroke | 16mm |
| Flange Width B1 | 11mm |
| Body Width B2 | 58mm |
| Diameter d1 | 382mm |
| Piston Surface Area | 33500mm2 |
| Weight | 40.7kg |
