SKU: HMV17E-BGL

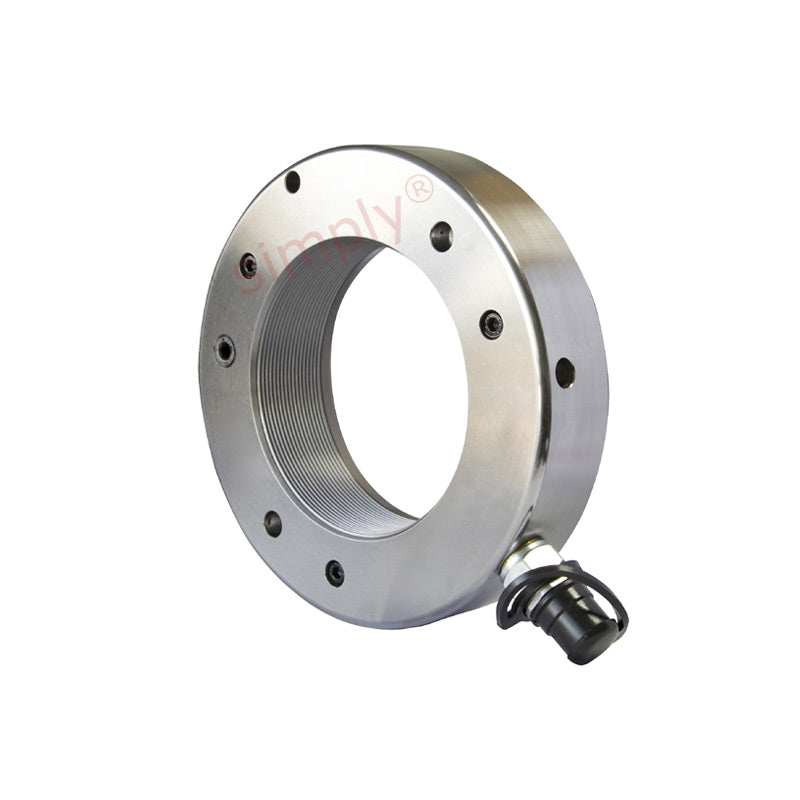

BGL HMV17E Metric Hydraulic Nut M85x2 Thread - Allow 2-3 Days
BGL HMV17E Metric Hydraulic Nut M85x2 Thread - Allow 2-3 Days
Regular price
$1,871.83
ex VAT
Regular price
Sale price
$1,871.83
ex VAT
In stock
Price Break
10+
$1,338.13
19+
$1,267.70
29+
$1,197.28
39+
$1,126.85
49+
$1,098.68
74+
$1,070.51
99+
$929.65
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M85x2
- Inside Diameter:
- 85.5mm
- Outside Diameter:
- 150mm
- Width:
- 38mm
- Flange Width:
- 5mm
Technical
Technical
| G Thread | M85x2 |
|---|---|
| d1 | 85.5mm |
| d2 | 142mm |
| d3 | 150mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 4400mm2 |
