SKU: HMV23E-SKF
SKF HMV23E Metric Hydraulic Nut M115x2 Thread
SKF HMV23E Metric Hydraulic Nut M115x2 Thread
Regular price
$1,719.43
ex VAT
Regular price
Sale price
$1,719.43
ex VAT
In stock
Price Break
10+
$1,151.73
19+
$1,087.02
29+
$1,074.08
39+
$1,061.14
49+
$1,048.20
74+
$1,035.26
99+
$970.56
199+
$957.62
249+
$944.67
499+
$931.73
999+
$905.85
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality

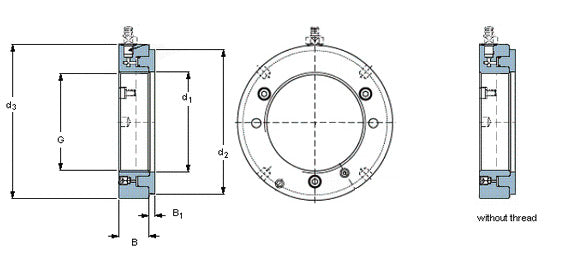

Technical
Technical
| G Thread | M115x2 |
|---|---|
| d1 | 115.5 |
| d2 | 174mm |
| d3 | 182mm |
| B | 38mm |
| B1 | 6mm |
| Permitted piston displacement | 5mm |
| Piston area | 5800mm2 |
