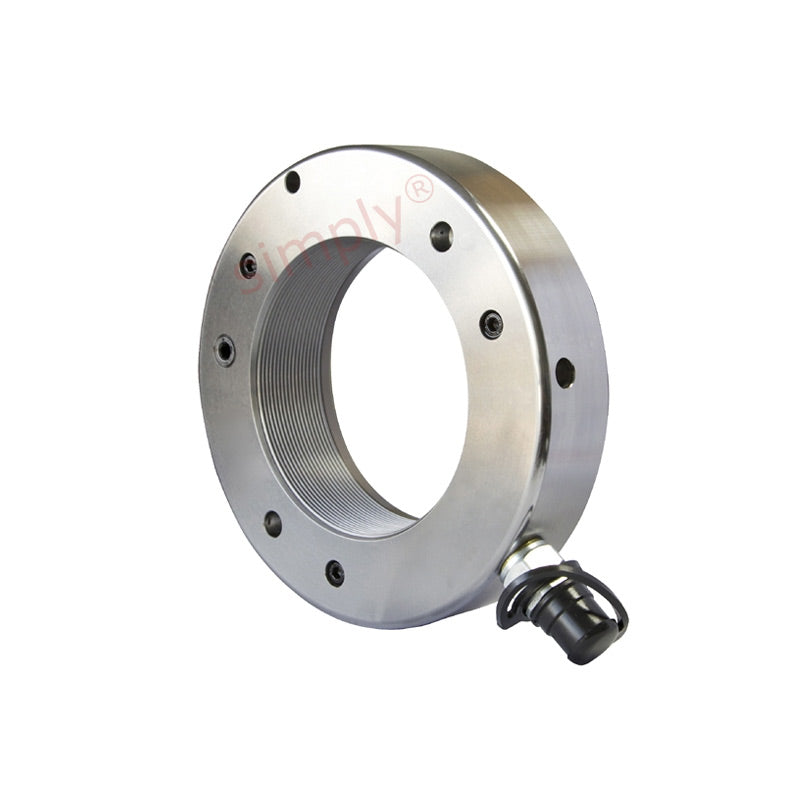

BGL HMV80E Metric Hydraulic Nut Tr400x5 Thread - Allow 1-2 Days
BGL HMV80E Metric Hydraulic Nut Tr400x5 Thread - Allow 1-2 Days
Regular price
$5,773.08
ex VAT
Regular price
Sale price
$5,773.08
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- Tr400x5
- Inside Diameter:
- 402mm
- Outside Diameter:
- 522mm
- Width:
- 60mm
- Flange Width:
- 11mm
Technical
Technical
| G Thread | Tr400x5 |
|---|---|
| d1 | 402mm |
| d2 | 499mm |
| d3 | 522mm |
| B | 60mm |
| B1 | 11mm |
| Permitted piston displacement | 17mm |
| Piston area | 36700mm2 |
