SKU: HOI-137

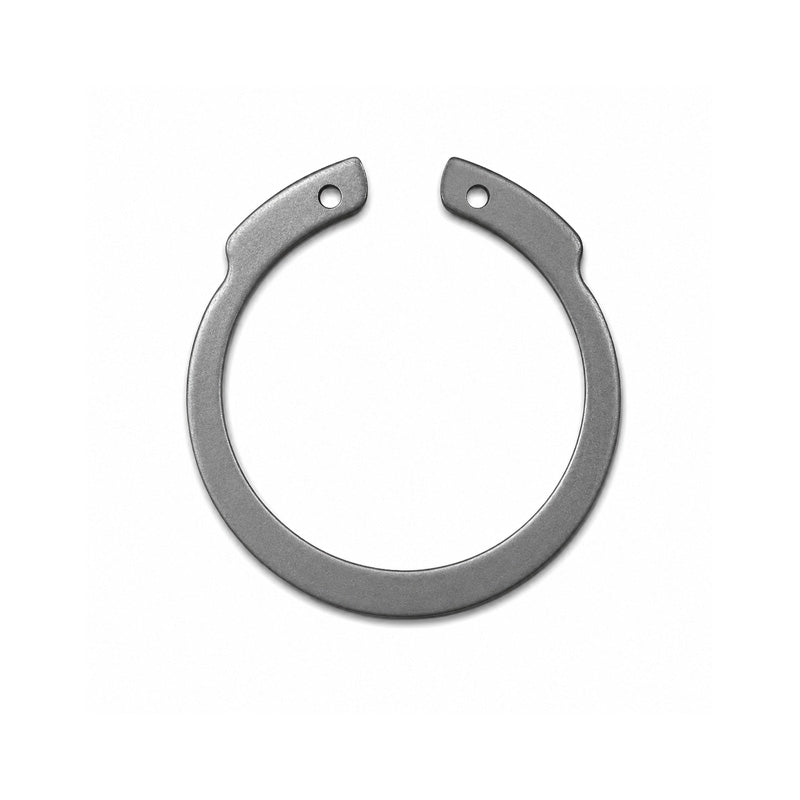

Inverted Internal Circlip 1-3/8 inch Diameter
Inverted Internal Circlip 1-3/8 inch Diameter
Equivalent to: HOI-137
Out of stock
Description
Description
Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Circlips - Economy Quality
Technical
Technical
| --- | Housing Diameter |
|---|---|
| Dh - Imperial | 1.375 inch = 1-3/8 inch |
| Dh - Metric | 34.9mm |
| --- | Groove Size |
| Dg - Diameter | 1.461 inch |
| Diameter Tolerance | +.004 to -.005* |
| W - Width | 0.056 inch |
| Width Tolerance | +.004 to -.000 |
| d - Depth | 0.043 inch |
| --- | Circlip Size and Weight |
| Df - Free Diameter | 1.486 inch |
| Free Diameter Tolerance | +.015 to -.010 |
| T - Thickness | 0.05 inch |
| Thickness Tolerance | 0.002 |
| Weight (1000pcs) lbs | 5.9 lbs |
| --- | Clearance Diameter |
| L1 - Compressed in Housing | 1.08 inch |
| L2 - Released in Groove | 1.16 inch |
| --- | Thrust Loads (Square Corner Abutment) |
| Pr - Ring Safety Factor of 4 | 5481 lbs |
| Pg - Groove Safety Factor of 2 | 2100 lbs |
| --- | Maximum Section (Including Lug) |
| S max - Maximum Section | 0.135 inch |
| Maximum Section Tolerance | 0.006 |
| --- | Minimum Section |
| S max - Minimum Section | 0.065 inch |
| Minimum Section Tolerance | 0.006 |
| --- | Hole Diameter |
| R - Hole Diameter | 0.05 inch |
| Hole Diameter Tolerance | +.010 to -.002 |
| --- | Gap Width (Ring in Groove) |
| G min - Gap Width | 0.33 inch |
| --- | Allowable Corner (Radius and Chamfers) |
| R max - Allowable Corner for Radius | 0.074 inch |
| Ch max - Allowable Corner for Chamfers | 0.046 |
| --- | Maximum Load (with R max or Ch max) |
| P"r - Maximum Load | 1800 |
| --- | Edge Margin |
| Y - Edge Margin | 0.129 inch |
