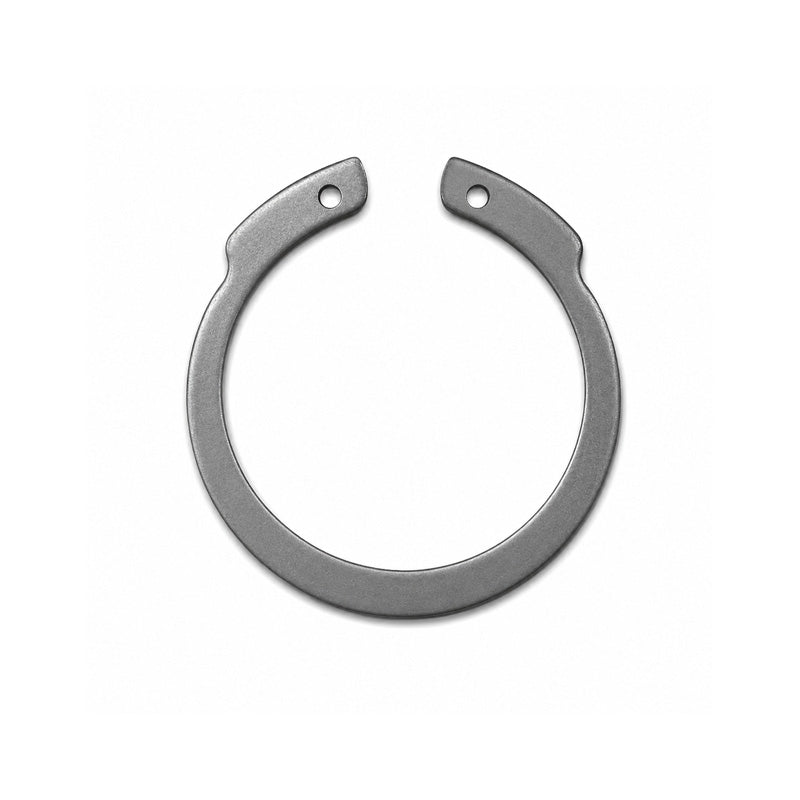

• Inverted Internal Circlip 1 inch Diameter
1 1

SKU: HOl-100

Inverted Internal Circlip 1 inch Diameter

Inverted Internal Circlip 1 inch Diameter

Equivalent to: HOl-100

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.

Brand / Quality:
Simply Circlips - Economy Quality
Technical
--- Housing Diameter
Dh - Imperial 1 inch
Dh - Metric 25.4mm
--- Groove Size
Dg - Diameter 1.066 inch
Diameter Tolerance +.003 to -.004*
W - Width 0.046 inch
Width Tolerance +.003 to -.000
d - Depth 0.033 inch
--- Circlip Size and Weight
Df - Free Diameter 1.081 inch
Free Diameter Tolerance +.010 to -.005
T - Thickness 0.042 inch
Thickness Tolerance 0.002
Weight (1000pcs) lbs 2.9 lbs
--- Clearance Diameter
L1 - Compressed in Housing 0.75 inch
L2 - Released in Groove 0.81 inch
--- Thrust Loads (Square Corner Abutment)
Pr - Ring Safety Factor of 4 3350 lbs
Pg - Groove Safety Factor of 2 1150 lbs
--- Maximum Section (Including Lug)
S max - Maximum Section 0.113 inch
Maximum Section Tolerance 0.005
--- Minimum Section
S max - Minimum Section 0.054 inch
Minimum Section Tolerance 0.005
--- Hole Diameter
R - Hole Diameter 0.042 inch
Hole Diameter Tolerance +.010 to -.002
--- Gap Width (Ring in Groove)
G min - Gap Width 0.225 inch
--- Allowable Corner (Radius and Chamfers)
R max - Allowable Corner for Radius 0.064 inch
Ch max - Allowable Corner for Chamfers 0.04
--- Maximum Load (with R max or Ch max)
P"r - Maximum Load 1250
--- Edge Margin
Y - Edge Margin 0.099 inch
