SKU: HP14-3M-15F

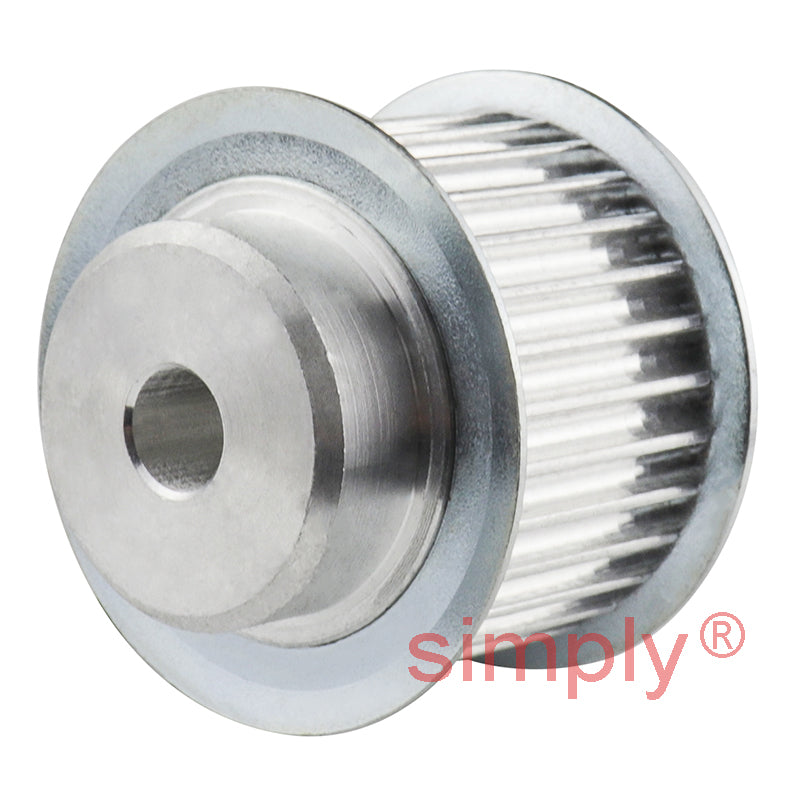

P14-3M-15F - 3mm Pitch 14 Tooth Flanged HTD Type Aluminium Timing Pulley for 15mm Wide Belts
- Regular price
- $12.83 ex VAT
- Sale price
- $12.83
- Regular price
-
Quantity Price Breaks
P14-3M-15F - 3mm Pitch 14 Tooth Flanged HTD Type Aluminium Timing Pulley for 15mm Wide Belts
- Regular price
- $12.83 ex VAT
- Sale price
- $12.83
- Regular price
-
Description
HTD Un-Bored Pilot Bore Timing Pulley: These High Torque Drive (HTD) timing pulleys feature a pilot hole to ease in the creation of your own bore size; ideal for bespoke applications and unusual sized shafts. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and a number of teeth along with standard widths.
Technical

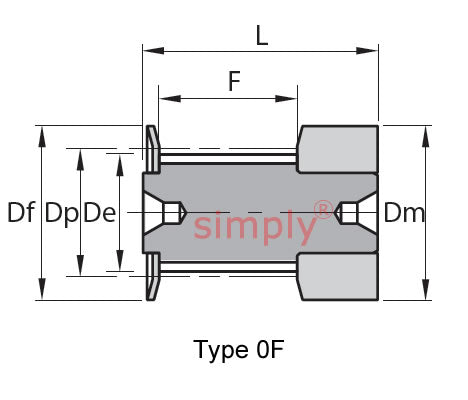

| --- | = | Pulley Dimensions |
| Pitch | = | 3mm |
| Number of Teeth | = | 14 |
| Type | = | 0F Unbored |
| Dp | = | 13.37mm |
| De | = | 12.61mm |
| Df | = | 16mm |
| Dm | = | 16mm |
| F | = | 17mm |
| L | = | 26mm |
| = | Weight | |
| 0.01kg | = | N/A |
