SKU: HP30-5M-15F

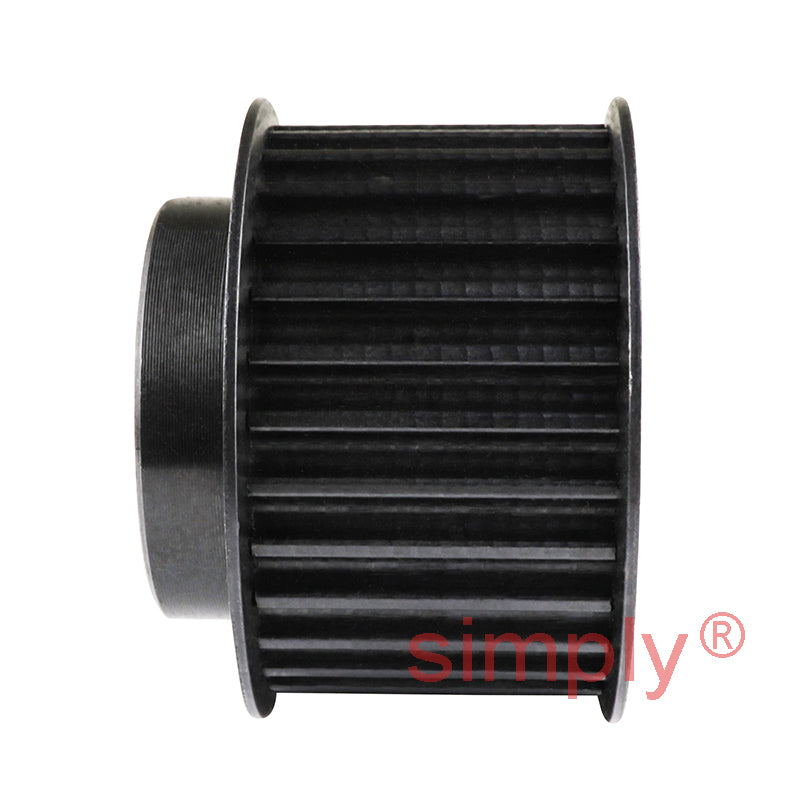

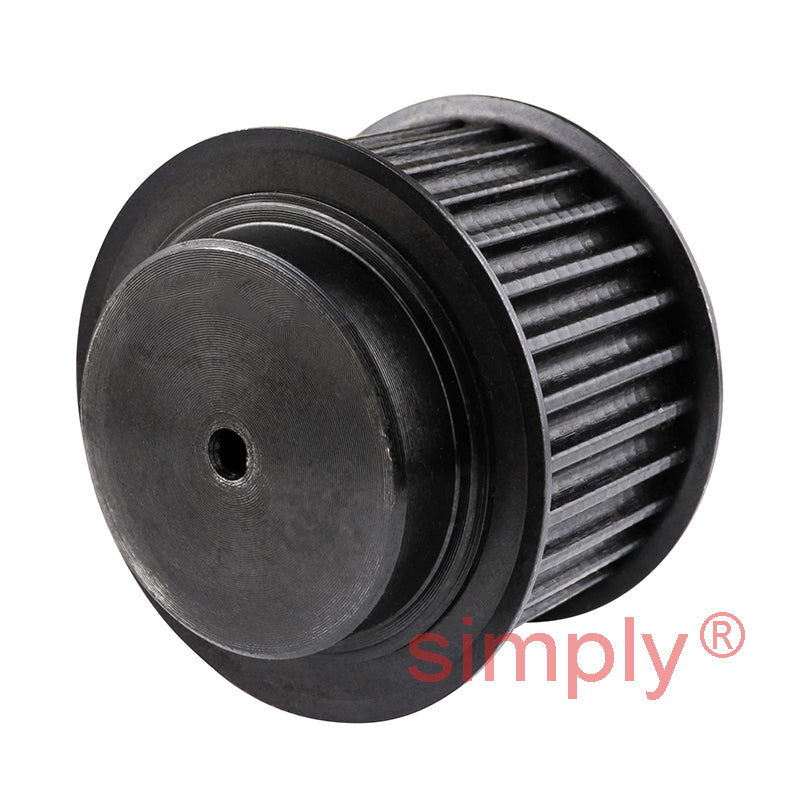

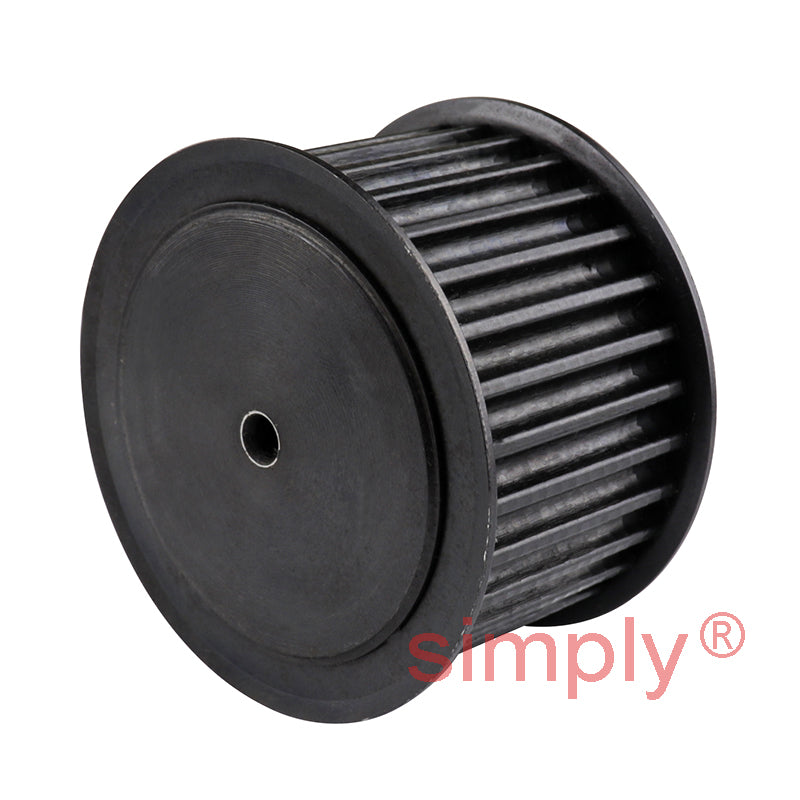

P30-5M-15F - 5mm Pitch 30 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 15mm Wide Belts

P30-5M-15F - 5mm Pitch 30 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 15mm Wide Belts
$19.58 ex VAT
$19.58 ex VAT
Sale Sold out

Equivalent to: 305M15F

In stock

Price Break
3+ $13.12
5+ $12.38
9+ $12.24
19+ $12.09
49+ $11.94
74+ $11.79
99+ $11.06
199+ $10.91
249+ $10.76
499+ $10.61
999+ $10.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
30
Pitch:
5mm
Item Type:
Pilot Bore Pulley
Maximum Belt Width:
15mm
Technical
--- Pulley Dimensions
Pitch 5mm
Number of Teeth 30
Type 1F Pilot Bore
Dp 47.75mm
De 46.6mm
Df 51mm
Dm 35mm
F 20.5mm
L 28mm
Pilot Bore - nominal 6mm
Weight 0.32kg
