SKU: HRC110B-MB

Major Branded HRC110B-MB HRC Coupling Single Flange Pilot Bored Max Bore 55mm

Major Branded HRC110B-MB HRC Coupling Single Flange Pilot Bored Max Bore 55mm
$22.44 ex VAT
$22.44 ex VAT
Sale Sold out

Equivalent to: HRC110B DRC110B

In stock

Price Break
10+ $15.03
19+ $14.19
29+ $14.02
39+ $13.85
49+ $13.68
74+ $13.51
99+ $12.67
199+ $12.50
249+ $12.33
499+ $12.16
999+ $11.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Technical

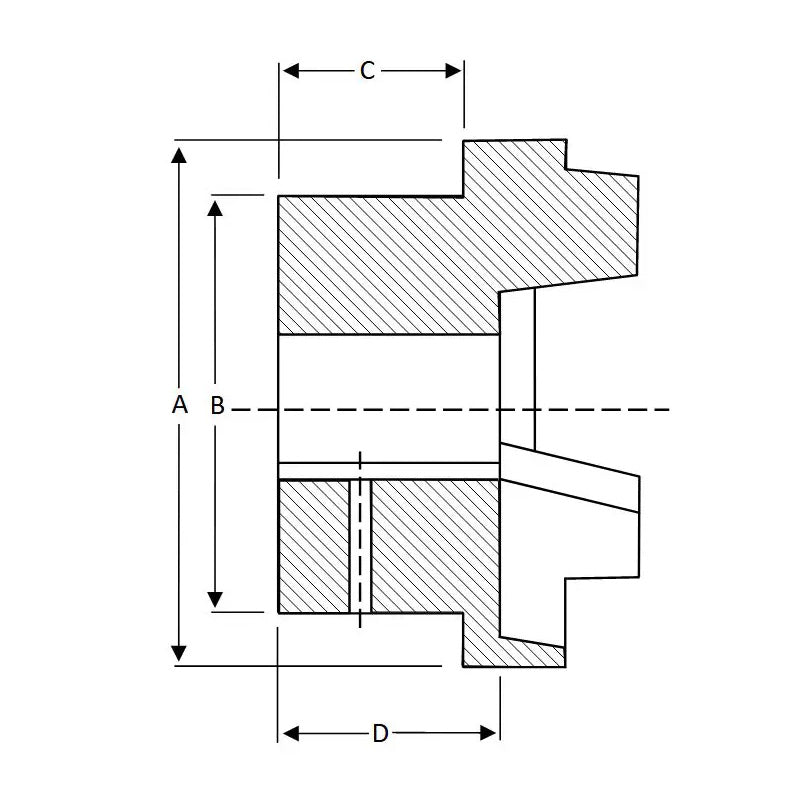

Nominal Torque 160 Nm
Overall Diameter A 112mm
Hub Diameter B 100mm
Assembled Length F 45.5mm
Insert Bore Dia E 45mm
Insert Width G 29.5mm
Parallel Misalignment 0.3mm
Weight 3.18kg
L width 119.5mm<sup>3</sup>
Max Bore 55mm
Pilot Bore (Approx) 10mm
Keyway Screw Size M10mm
Shoulder Width D 37mm
Hub Width C 45.5mm
Max Power at 100 rpm 1.68 kW
Max Power at 200 rpm 3.35 kW
Max Power at 400 rpm 6.7 kW
Max Power at 600 rpm 10.1 kW
Max Power at 720 rpm 12.1 kW
Max Power at 800 rpm 13.4 kW
Max Power at 960 rpm 16.1 kW
Max Power at 1200 rpm 20.1 kW
Max Power at 1440 rpm 24.1 kW
Max Power at 1600 rpm 26.8 kW
Max Power at 1800 rpm 30.2 kW
Max Power at 2000 rpm 33.5 kW
Max Power at 2200 rpm 36.9 kW
Max Power at 2400 rpm 40.2 kW
Max Power at 2600 rpm 43.6 kW
Max Power at 2880 rpm 48.3 kW
Max Power at 3000 rpm 50.3 kW
Max Power at 3600 rpm 60.3 kW
Nominal Torque (Nm) 160 Nm
Max Torque 360 Nm
